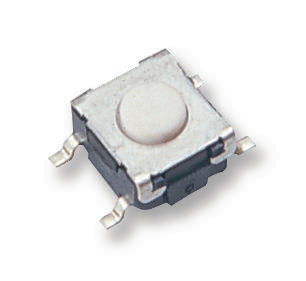

B3S-1000 Switch, SPNO, 0.05A, 24V, SMD Omron

OMRONUGS :B3S-1000 Code de commande:177807

Prix:
Prix ​​promotionnel€0,88

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (7785 unité)

Documents et téléchargements

description

OMRON - B3S-1000 - Tactile Switch, B3S, Top Actuated, Surface Mount, Round Button, 160 gf, 50mA at 24VDC

  • Product Range: B3S Series
  • Actuator Orientation: Top Actuated
  • Switch Mounting: SMD
  • Actuator Style: Round Button
  • Actuating Force: 160gf
  • Contact Rating: 50mA at 24VDC
  • Switch Dimensions (L x W): 6.6mm x 6mm
  • IP Rating: IP67
  • Illumination: Non Illuminated
  • Actuation Type: Top
  • Actuator / Cap Colour: White
  • Contact Configuration: SPST-NO
  • Contact Current Max: 50mA
  • Contact Resistance: 100mohm
  • Contact Voltage DC Nom: 24V
  • Dielectric Strength VDC: 500V
  • External Depth: 6.6mm
  • External Length / Height: 4.3mm
  • External Width: 6mm
  • Insulation Resistance: 100Mohm
  • Insulation Resistance Voltage: 250VDC
  • Load Current Min: 1mA
  • No. of Mechanical Operations: 500000
  • Operating Force: 1.57N
  • Operating Temperature Max: 70°C
  • Operating Temperature Min: -25°C
  • Pre-travel: 0.25mm
  • Return Force Min: 20gf
  • Switch Terminals: Solder
