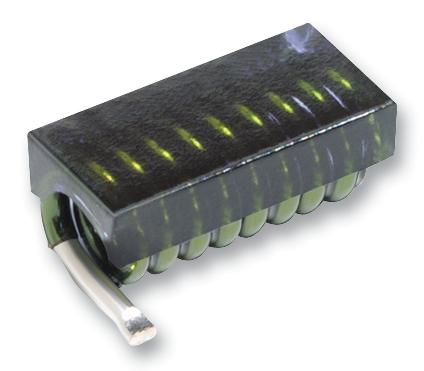

COILCRAFT - B07TGLC - Air Core Inductor, 22 nH, 4 A, Mini Spring, ± 2%, 0.0052 ohm, 2.1 GHz
- Inductance: 22nH
- RMS Current (Irms): 4A
- Product Range: Mini Spring Series
- Inductance Tolerance: ± 2%
- Air Core Inductor Case: 6.86mm x 2.79mm x 3.15mm
- DC Resistance Max: 0.0052ohm
- Self Resonant Frequency Min: 2.1GHz
- SVHC: No SVHC (15-Jan-2019)
- Core Material: Air
- DC Current Rating: 4A
- Reel Quantity: 500
