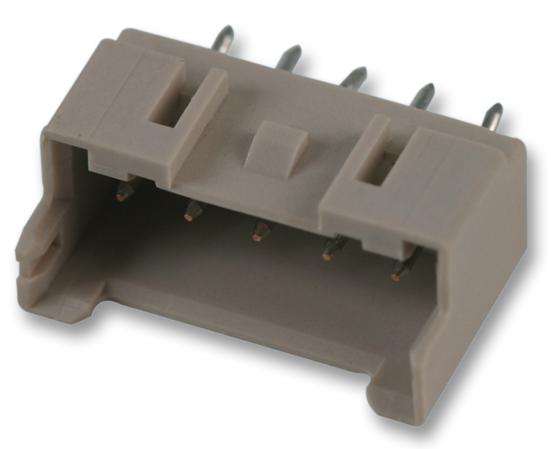

JST (JAPAN SOLDERLESS TERMINALS) - B07B-XASK-1(LF)(SN) - Pin Header, Shrouded, Wire-to-Board, 2.5 mm, 1 Rows, 7 Contacts, Through Hole, XA
- Pitch Spacing: 2.5mm
- No. of Contacts: 7Contacts
- Gender: Header
- Product Range: XA Series
- Contact Termination Type: Crimp
- No. of Rows: 1Rows
- Contact Plating: Tin Plated Contacts
- Contact Material: Phosphor Bronze
- SVHC: No SVHC (27-Jun-2018)
- Colour: Ivory
- Contact Resistance Max: 10mohm
- Current Rating: 3A
- External Depth: 6.4mm
- External Width: 20mm
- Flammability Rating: UL94V-0
- Height: 8.8mm
- Insulation Resistance: 1000Mohm
- Lead Length: 3.4mm
- Material: Nylon 6.6
- Operating Temperature Max: 85°C
- Operating Temperature Min: -25°C
- Voltage Rating V DC: 250V
- Voltage Rating VAC: 250V
- Wire Size AWG Max: 20AWG
- Wire Size AWG Min: 28AWG
- Withstand Voltage: 1000VAC
