description

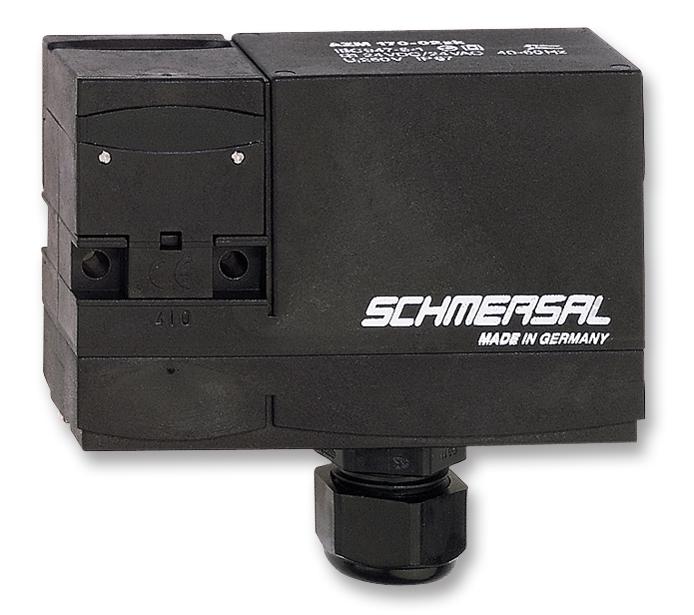

SCHMERSAL - AZM170-02ZRKA-24VAC/DC - Limit Switch, 2NC, 4 A at 230VAC/24VDC, 24 VAC/VDC Coil
- Limit Switch Actuator: -
- Contact Configuration: 2NC
- Contact Current AC Max: 4A
- Contact Voltage AC Max: 230V
- Operating Force Max: -
- Product Range: -
- Contact Current DC Max: -
- Contact Voltage DC Max: 24V
- Approval Bodies: BG, CCC
- Approval Category: UL Recognised
- Case Material: GRP
- Conduit Thread Size: M20 x 1.5
- External Depth: 30mm
- External Length / Height: 60mm
- External Width: 90mm
- IP / NEMA Rating: IP67
- Operating Temperature Max: 60°C
- Operating Temperature Min: -25°C
- Operating Voltage: 24V AC/DC
- Switch Terminals: IDC
