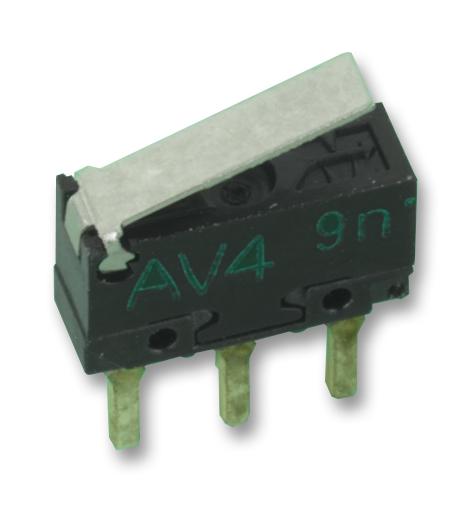

PANASONIC - AV442461 - Microswitch, Snap Action, Lever, SPDT-NC, Solder, 100 mA, 30 VDC
- Microswitch Type: Snap Action
- Microswitch Actuator: Lever
- Contact Configuration: SPDT-NC
- Switch Terminals: Solder
- Contact Current Max: 100mA
- Contact Voltage DC Nom: 30VDC
- Product Range: AV4 Series
- Contact Voltage AC Nom: -
- Operating Force Max: 0.25N
- SVHC: No SVHC (07-Jul-2017)
- Actuation Type: Lever
- Actuator Type: Hinge Lever
- Contact Current @ Contact Voltage DC Max: 100mA
- Contact Current AC: 500mA
- Contact Current DC Max: 100mA
- Contact Resistance: 200mohm
- Contact Voltage DC Max: 30V
- Differential Travel Max: 0.7mm
- External Depth: 2.5mm
- External Length / Height: 4.5mm
- External Width: 7.5mm
- Fixing Centres LxW: 4mm
- Insulation Resistance: 100Mohm
- No. of Electrical Operations: 200000
- No. of Mechanical Operations: 300000
- Operating Force: 0.25N
- Operating Temperature Max: 80°C
- Operating Temperature Min: -25°C
- Over Travel Min: 0.4mm
- Pre-travel: 2.4mm
