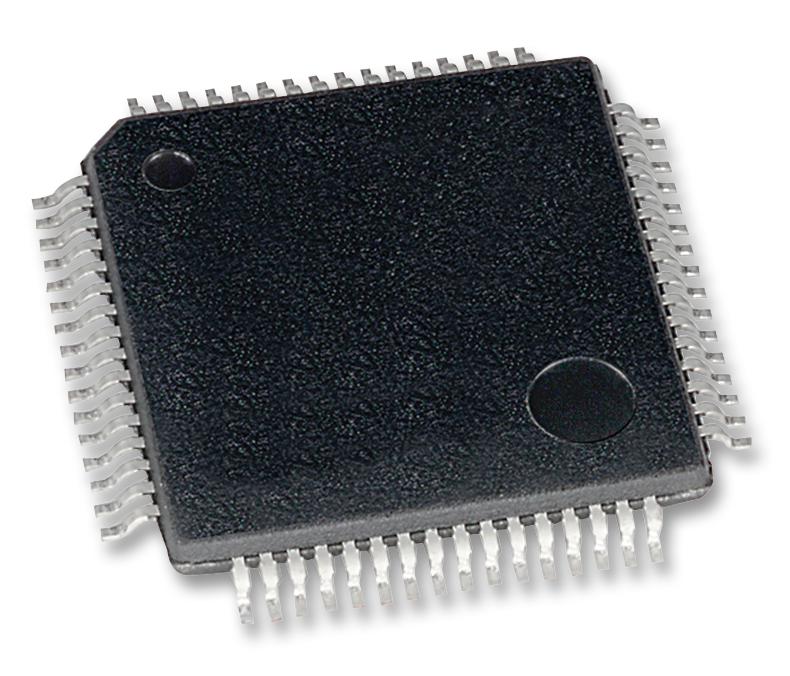

MICROCHIP - AT90USB1286-AU - MCU-Application Specific 8BIT, AVR, 16MHz, 8 KB RAM/128 KB Program, 2.7V-5.5Vin, TQFP-64
- Product Range: 8051 Family AT90USB Series Microcontrollers
- Architecture: AVR
- MCU Core Size: 8bit
- Program Memory Size: 128KB
- RAM Memory Size: 8KB
- CPU Speed: 16MHz
- No. of I/O's: 48I/O's
- MCU Case Style: TQFP
- No. of Pins: 64Pins
- Embedded Interface Type: I2C, SPI, UART, USART
- MCU Applications: USB Microcontroller
- Supply Voltage Min: 2.7V
- Supply Voltage Max: 5.5V
- MCU Family: 8051
- MCU Series: AT90USB
- Automotive Qualification Standard: -
- RoHS Phthalates Compliant: Yes
- MSL: MSL 3 - 168 hours
- SVHC: No SVHC (27-Jun-2018)
- Clock Frequency: 20MHz
- Controller Family/Series: AVR USB
- Device Marking: AT90USB1286-AU
- EEPROM Memory Size: 4KB
- Flash Memory Size: 128KB
- MPU Core Size: 8bit
- No. of ADC Inputs: 8
- No. of PWM Channels: 10
- No. of Timers: 4
- Operating Temperature Max: 85°C
- Operating Temperature Min: -40°C
- Operating Temperature Range: -40°C to +85°C
- Oscillator Type: External, Internal
- Peripherals: ADC, Comparator, PWM, RTC, Timer
- Program Memory Size: 128KB
