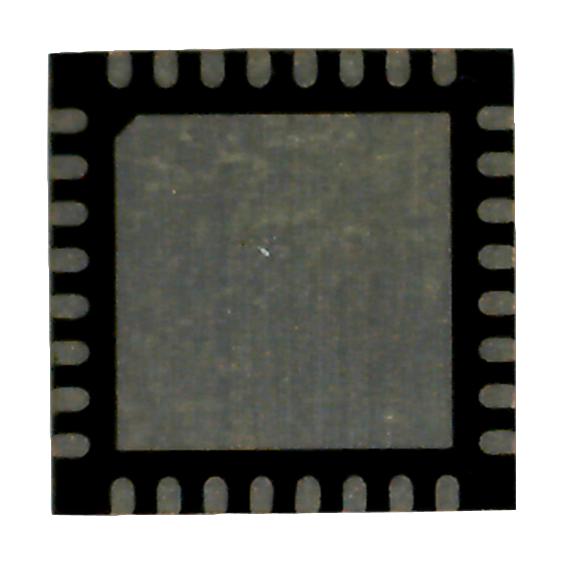

AT86RF231-ZU Transceiver, Zigbee/802.15.4.4, 32QFN Microchip

MICROCHIPUGS :AT86RF231-ZU Code de commande:1748493

Prix:
Prix ​​promotionnel€6,24

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
Rupture de stock

description

MICROCHIP - AT86RF231-ZU - TRANSCEIVER, ZIGBEE/802.15.4.4, 32QFN

  • Frequency Min: 2.405GHz
  • Frequency Max: 2.48GHz
  • RF / IF Modulation: O-QPSK
  • Receiving Current: 12.3mA
  • Transmitting Current: 11.6mA
  • RF IC Case Style: QFN
  • No. of Pins: 32Pins
  • Supply Voltage Min: 1.8V
  • Supply Voltage Max: 3.6V
  • Data Rate: 2Mbps
  • Output Power (dBm): 3dBm
  • Sensitivity dBm: -101dBm
  • Operating Temperature Min: -40°C
  • Operating Temperature Max: 85°C
  • Product Range: -
  • RoHS Phthalates Compliant: Yes
  • MSL: MSL 3 - 168 hours
  • SVHC: No SVHC (15-Jan-2018)
  • 3rd Order Intercept Point: -45dBm
  • Frequency Range: 2.405GHz to 2.48GHz
  • Modulation Type: O-QPSK
  • Noise Factor Typ: 6dB
  • Operating Temperature Range: -40°C to +85°C
  • Sensitivity: -101dBm
  • Supply Voltage Range: 1.8V to 3.6V
  • Termination Type: Surface Mount Device
