ASFLMPC-10.000MHZ-Lr-T Osc, MEMS, CMOS, 10.000MHZ, 5X3.2 ABRACON

ABRACONUGS :ASFLMPC-10.000MHZ-LR-T Code de commande:1960725

Prix:
Prix ​​promotionnel€3,40

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (1000 unité)

Documents et téléchargements

description

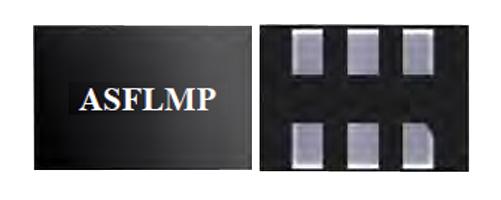

ABRACON - ASFLMPC-10.000MHZ-LR-T - MEMS Oscillator, Clock, Pure Silicon™, 10 MHz, SMD, 5mm x 3.2mm, 25 ppm, 3.3 V, ASFLMP, CMOS

  • Frequency Nom: 10MHz
  • Oscillator Case: SMD, 5mm x 3.2mm
  • Frequency Stability + / -: 25ppm
  • Supply Voltage Nom: 3.3V
  • Product Range: ASFLMP Series
  • Oscillator Output Compatibility: CMOS
  • Operating Temperature Min: -40°C
  • Operating Temperature Max: 85°C
  • SVHC: No SVHC (15-Jan-2019)
  • Crystal Case: 5mm x 3.2mm
  • Frequency: 10MHz
  • Frequency Stability: ± 25ppm
  • Load Capacitance: 15pF
  • No. of Pins: 6Pins
  • Operating Temperature Range: -40°C to +85°C
  • Oscillator Mounting: SMD
  • Supply Voltage Max: 3.6V
  • Supply Voltage Min: 2.25V
  • Type: CMOS
