ASEMPC-60.000MHZ-Lr-T Osc, MEMS, CMOS, 60.000MHZ, 3.2x2.5 ABRACON

ABRACONUGS :ASEMPC-60.000MHZ-LR-T Code de commande:1960719

Prix:
Prix ​​promotionnel€6,29

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (77 unité)

Documents et téléchargements

description

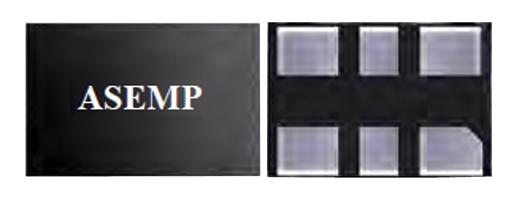

ABRACON - ASEMPC-60.000MHZ-LR-T - MEMS Oscillator, Clock, Pure Silicon™, 60 MHz, SMD, 3.2mm x 2.5mm, 25 ppm, 3.3 V, ASEMP, CMOS

  • Frequency Nom: 60MHz
  • Oscillator Case: SMD, 3.2mm x 2.5mm
  • Frequency Stability + / -: 25ppm
  • Supply Voltage Nom: 3.3V
  • Product Range: ASEMP Series
  • Oscillator Output Compatibility: CMOS
  • Operating Temperature Min: -40°C
  • Operating Temperature Max: 85°C
  • SVHC: No SVHC (15-Jan-2019)
  • Crystal Case: 3.2mm x 2.5mm
  • Frequency: 60MHz
  • Frequency Stability: ± 25ppm
  • Load Capacitance: 15pF
  • No. of Pins: 6Pins
  • Operating Temperature Range: -40°C to +85°C
  • Oscillator Mounting: SMD
  • Supply Voltage Max: 2.25V
  • Supply Voltage Min: 3.6V
  • Type: CMOS
