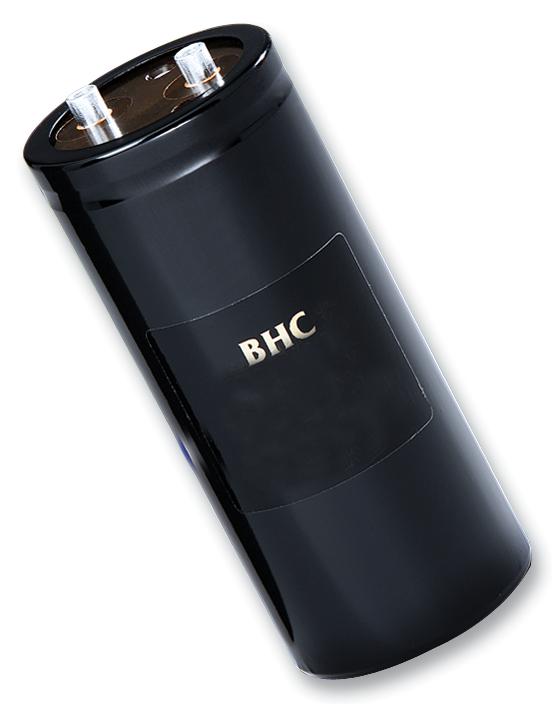

KEMET - ALS30A223MF100 - Electrolytic Capacitor, 22000 µF, 100 V, ± 20%, Screw, 19000 hours @ 85°C
- Capacitance: 22000µF
- Voltage Rating: 100V
- Product Range: ALS30 Series
- Lifetime @ Temperature: 19000 hours @ 85°C
- Capacitance Tolerance: ± 20%
- Capacitor Terminals: Screw
- Diameter: 66mm
- Lead Spacing: 28.5mm
- Operating Temperature Min: -40°C
- Operating Temperature Max: 85°C
- Height: 105mm
- ESR: 0.013ohm
- Automotive Qualification Standard: -
- SVHC: No SVHC (15-Jan-2018)
- AC Ripple Current @ 100Hz: 18.4A
- AC Ripple Current @ 10kHz: 19.1A
- Capacitance Tolerance ±: ± 20%
- Climatic Category: 40/085/56
- ESR Frequency: 100Hz
- ESR Temperature: 20°C
- External Length / Height: 105mm
- Leakage Current: 13200mA
- Operating Life Temperature: 85°C
- Operating Temperature Range: -40°C to +85°C
- Operating life Time: 19000h
- Ripple Current AC: 18.4A
- Ripple Current Frequency: 100Hz
- Ripple Current Temperature: 85°C
