description

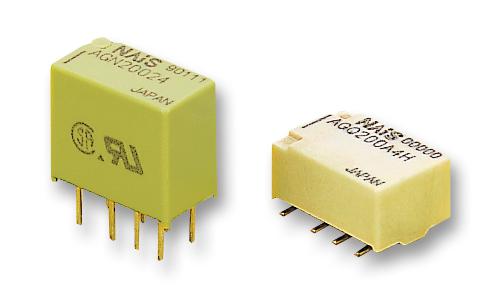

PANASONIC - AGQ200A4H - Signal Relay, 4.5 VDC, DPDT, 2 A, AGQ, Surface Mount, Non Latching
- Coil Voltage: 4.5VDC
- Contact Configuration: DPDT
- Contact Current: 2A
- Product Range: AGQ Series
- Relay Mounting: SMD
- Coil Type: Non Latching
- Relay Terminals: Solder
- Contact Voltage VAC: -
- Contact Voltage VDC: 30V
- Contact Material: Silver Palladium
- Coil Resistance: 145ohm
- SVHC: No SVHC (07-Jul-2017)
- Approvals & Standards: CSA, UL
- Coil Current: 31mA
- Coil Power Continuous: 140mW
- Coil Voltage VDC Nom: 4.5V
- Contact Current AC Max: 300mA
- Contact Current DC Max: 1A
- Contact Current Max: 1A
- Contact Voltage AC Max: 125V
- Contact Voltage AC Nom: 125V
- Contact Voltage DC Max: 30V
- Contact Voltage DC Nom: 30V
- DC Coil Power: 140mW
- External Depth: 10.6mm
- External Height: 5.4mm
- External Length / Height: 10.6mm
- External Width: 7.2mm
- Nom Operating Power: 140mW
- Operating Temperature Max: 85°C
- Operating Temperature Min: -40°C
- Operating Time: 4ms
- Relay Type: General Purpose
- Release Time: 4ms
- Switch Current Max: 1A
- Switching Current Max: 1A
