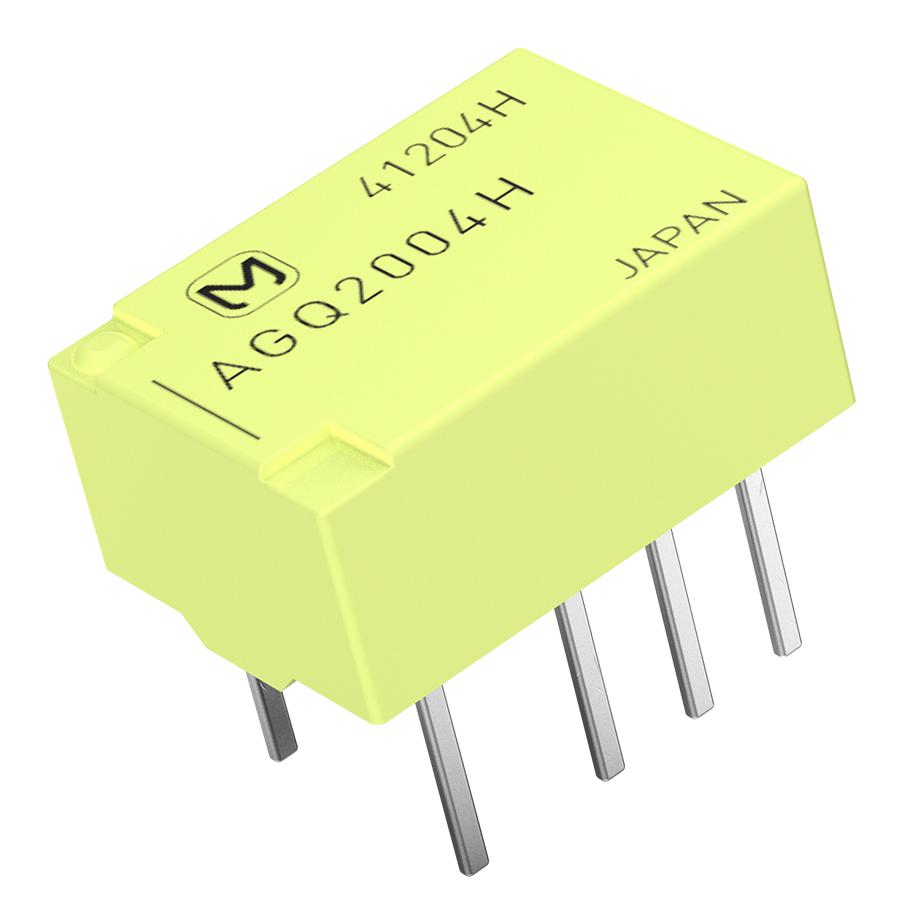

AGQ2004H Relay, Signal, DPDT, 30Vdc, 2A Panasonic

PANASONICUGS :AGQ2004H Code de commande:3104813

Prix:
Prix ​​promotionnel€3,22

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (425 unité)

Documents et téléchargements

description

PANASONIC - AGQ2004H - Signal Relay, 4.5 VDC, DPDT, 2 A, AGQ, Through Hole, Non Latching

  • Coil Voltage: 4.5VDC
  • Contact Configuration: DPDT
  • Contact Current: 2A
  • Product Range: AGQ Series
  • Relay Mounting: Through Hole
  • Coil Type: Non Latching
  • Relay Terminals: Solder
  • Contact Voltage VAC: -
  • Contact Voltage VDC: 30V
  • Contact Material: Silver Palladium
  • Coil Resistance: 145ohm
  • SVHC: No SVHC (07-Jul-2017)
  • Approvals & Standards: CSA, UL
  • Coil Current: 31mA
  • Coil Power Continuous: 140mW
  • Coil Voltage VDC Nom: 4.5V
  • Contact Current AC Max: 300mA
  • Contact Current Max: 2A
  • Contact Voltage AC Nom: 125V
  • Contact Voltage DC Nom: 30V
  • External Depth: 10.6mm
  • External Height: 5.2mm
  • External Length / Height: 10.6mm
  • External Width: 7.2mm
  • Operating Temperature Max: 85°C
  • Operating Temperature Min: -40°C
  • Operating Time: 4ms
  • Relay Type: General Purpose
  • Release Time: 4ms
