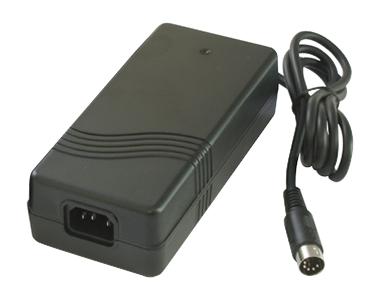

XP POWER - AEH80UM31 - AC/DC Power Supply, ITE, 3 Output, 65 W, 5 V, 6 A, 12 V
- No. of Outputs: 3 Output
- Output Power Max: 65W
- Output Voltage - Output 1: 5V
- Output Current - Output 1: 6A
- Output Voltage - Output 2: 12V
- Output Current - Output 2: 3A
- Output Connector: 8 Way Mini DIN
- Output Voltage - Output 3: -12V
- Output Current - Output 3: 800mA
- Power Supply Output Type: Fixed
- Input Voltage VAC: 90V AC to 264V AC
- Product Range: -
- Plug Type: Mains Plug Sold Separately
- SVHC: No SVHC (15-Jan-2018)
- Applications: General Purpose
- Approval Bodies: CE, CSA, cUL, EN, UL
- External Depth: 167.9mm
- External Length / Height: 44.5mm
- External Width: 78.5mm
- Input Voltage AC Max: 264V
- Input Voltage AC Min: 90V
- Lead Length: 1220mm
- No. of Outputs: 3Outputs
- Operating Temperature Max: 70°C
- Operating Temperature Min: 0°C
- Power Rating: 65W
- Power Supply Mounting: Desktop
- Power Supply Type: Desktop External
- Supply Frequency Max: 63Hz
- Supply Frequency Min: 47Hz
- Supply Voltage: 264V
- Supply Voltage Max: 264V
- Supply Voltage Min: 90V
