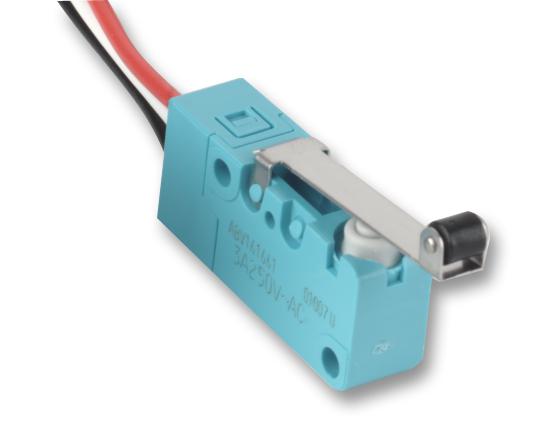

PANASONIC - ABV161661 - Microswitch, Snap Action, Roller Lever, SPDT, Wire Leaded, 3 A
- Microswitch Type: Snap Action
- Microswitch Actuator: Roller Lever
- Contact Configuration: SPDT
- Switch Terminals: Wire Leaded
- Contact Current Max: 3A
- Contact Voltage DC Nom: -
- Product Range: ABV Series
- Contact Voltage AC Nom: 250VAC
- Operating Force Max: 300gf
- SVHC: No SVHC (07-Jul-2017)
- Actuation Type: Roller Lever
- Actuator Type: Roller Lever
- Contact Current @ Contact Voltage AC Max: 2A
- Contact Current @ Contact Voltage DC Max: 2A
- Contact Current AC: 5A
- Contact Current AC Max: 3A
- Contact Current DC Max: 5mA
- Contact Resistance: 100mohm
- Contact Voltage AC Max: 250V
- Contact Voltage DC Max: 30V
- Differential Travel Max: 1.2mm
- External Depth: 10mm
- External Length / Height: 15.9mm
- External Width: 36mm
- Fixing Centres LxW: 22.2mm
- IP / NEMA Rating: IP67
- Insulation Resistance: 100Mohm
- No. of Electrical Operations: 100000
- No. of Mechanical Operations: 5000000
- Operating Force: 1.77N
- Operating Temperature Max: 85°C
- Operating Temperature Min: -40°C
- Over Travel Min: 1.2mm
