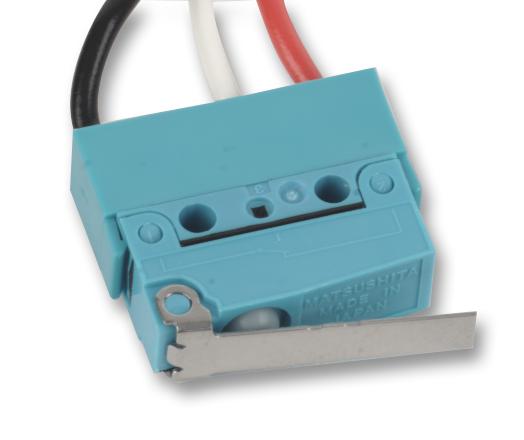

PANASONIC - ABS161240 - Microswitch, Snap Action, Lever, SPDT, Wire Leaded, 2 A, 125 VDC
- Microswitch Type: Snap Action
- Microswitch Actuator: Lever
- Contact Configuration: SPDT
- Switch Terminals: Wire Leaded
- Contact Current Max: 2A
- Contact Voltage DC Nom: 125VDC
- Product Range: ABS Series
- Contact Voltage AC Nom: 250VAC
- Operating Force Max: 35gf
- SVHC: No SVHC (07-Jul-2017)
- Actuation Type: Lever
- Actuator Type: Hinge Lever
- Contact Current @ Contact Voltage AC Max: 2A
- Contact Current @ Contact Voltage DC Max: 2A
- Contact Current AC: 2A
- Contact Current AC Max: 2A
- Contact Current DC Max: 2A
- Contact Resistance: 100mohm
- Contact Voltage AC Max: 250V
- Contact Voltage DC Max: 30V
- Differential Travel Max: 0.8mm
- External Depth: 6.4mm
- External Length / Height: 16.9mm
- External Width: 21.2mm
- Fixing Centres LxW: 9.5mm
- IP / NEMA Rating: IP67
- Insulation Resistance: 100Mohm
- Insulation Resistance Voltage: 500VDC
- No. of Electrical Operations: 50000
- No. of Mechanical Operations: 5000000
- Operating Force: 0.34N
- Operating Temperature Max: 85°C
- Operating Temperature Min: -40°C
