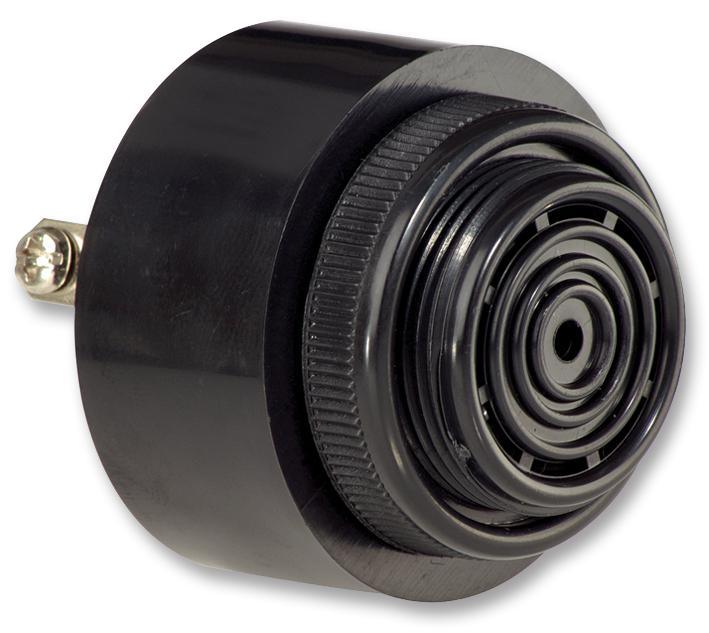

ABI-024-RC Piezo Buzzer, Panel multicomp Pro

MULTICOMP PROUGS :ABI-024-RC Code de commande:1300018

Prix:
Prix ​​promotionnel€10,43

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (202 unité)

Documents et téléchargements

description

MULTICOMP PRO - ABI-024-RC - Transducer, Piezo, Buzzer, Panel, Buzzer, Continuous, 4 V, 28 V, 8 mA, 97 dB

  • Transducer Function: Buzzer
  • Tones: Continuous
  • Supply Voltage Min: 4V
  • Supply Voltage Max: 28V
  • Operating Current Max: 8mA
  • Sound Level SPL: 97dB
  • Sound Level Distance: 30cm
  • Resonant Frequency: 2.8kHz
  • Product Range: -
  • SVHC: No SVHC (27-Jun-2018)
  • Behind Panel Depth: 32.5mm
  • Colour: Black
  • Current Consumption: 8mA
  • Current Rating: 8mA
  • External Depth: 45.5mm
  • External Diameter: 43mm
  • External Height: 33mm
  • External Length / Height: 45.5mm
  • Frequency: 2800Hz
  • Material: ABS
  • Operating Temperature Max: 60°C
  • Operating Temperature Min: -20°C
  • Panel Cutout Diameter: 28mm
  • Supply Voltage: 12VDC
  • Supply Voltage DC Max: 28V
  • Supply Voltage DC Min: 4V
  • Supply Voltage V DC: 12V
  • Weight: 43g
