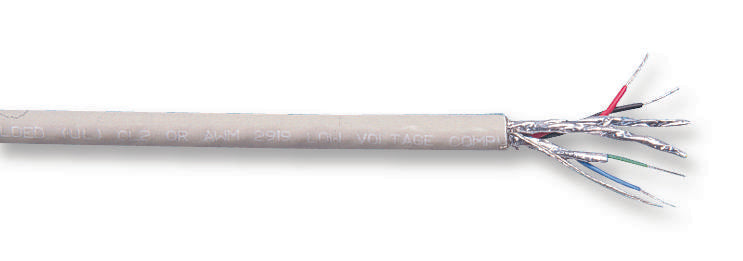

BELDEN - 9903 E4X500 - Multipair Cable, Thin Ethernet, Screened, 4 Pair, 28 AWG, 0.08 mm², 498.69 ft, 152 m
- Cable Shielding: Screened
- No. of Pairs: 4 Pair
- Wire Gauge: 28AWG
- Conductor Area CSA: 0.08mm²
- Reel Length (Imperial): 498.69ft
- Reel Length (Metric): 152m
- Jacket Colour: Grey
- No. of Max Strands x Strand Size: 7 x 0.2mm
- Voltage Rating: 30V
- Jacket Material: PVC
- Conductor Material: Tinned Copper
- External Diameter: 6.35mm
- Product Range: -
- SVHC: No SVHC (15-Jan-2018)
- Alpha Type Number: 9854C EQUIVALENT
- Belden Type Number: 9903
- Cable Type: Foil + Braided Shield
- Cable UL Style Number: UL2919
- Complex Cable Make-Up: 6 x 7/36, 2 x 7/32
- Conductor Make-up: 3 / 7 / 36AWG + 1 / 7 / 32AWG
- Core - Core Capacitance: 64.6pF
- Core-Screen Capacitance: 114.2pF
- Current Rating: 1.5A
- Drain Wire Type: Integral
- Impedance: 78ohm
- No. of Cores: 6Core
- Outer Diameter: 6.35mm
- Screen Type Primary: Bedfoil
- Screen Type, Secondary: Tinned copper braid
- Secondary Insulation Colour: Grey
- Secondary Insulation Material: PVC
- Velocity of Propagation (%): 66%
