99-4221-110-04 Plug, Free, PG11, 3WAY+PE Binder

BINDERUGS :99-4221-110-04 Code de commande:1778876

Prix:
Prix ​​promotionnel€28,92

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (52 unité)

Documents et téléchargements

description

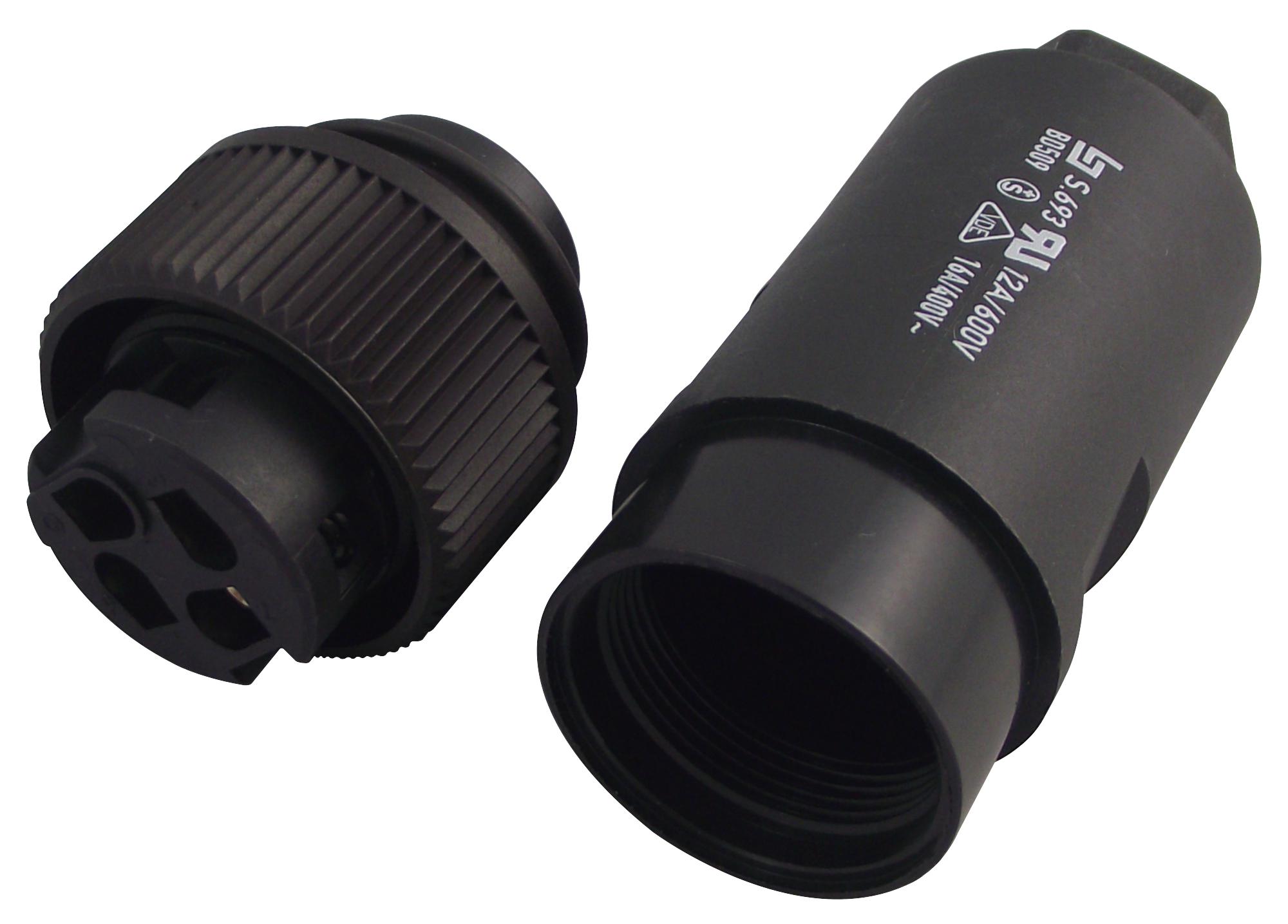

BINDER - 99-4221-110-04 - Circular Connector, 693 Series, Cable Mount Plug, 4 Contacts, Screw Pin

  • Product Range: 693 Series
  • Circular Connector Shell Style: Cable Mount Plug
  • No. of Contacts: 4Contacts
  • Circular Contact Type: Screw Pin
  • Coupling Style: -
  • Connector Body Material: -
  • Connector Body Plating: -
  • Contact Material: Brass
  • Contact Plating: Silver
  • SVHC: Lead (27-Jun-2018)
  • Cable Diameter Max: 10mm
  • Cable Diameter Min: 8mm
  • Connector Mounting: Cable Mount
  • Connector Type: Circular Industrial
  • Contact Gender: Pin
  • Contact Plating: Silver Plated Contacts
  • Contact Termination: Screw
  • Contact Termination Type: Screw
  • Current Rating: 16A
  • Flammability Rating: UL94V-0
  • Gender: Plug
  • IP / NEMA Rating: IP67
  • No. of Mating Cycles: 500
  • Operating Temperature Max: 100°C
  • Operating Temperature Min: -40°C
  • Termination Type: Screw
  • Voltage Rating VAC: 400V
  • Wire Area Size Max: 2.5mm²
  • Wire Area Size Min: 0.5mm²
  • Withstand Voltage: 6000V
