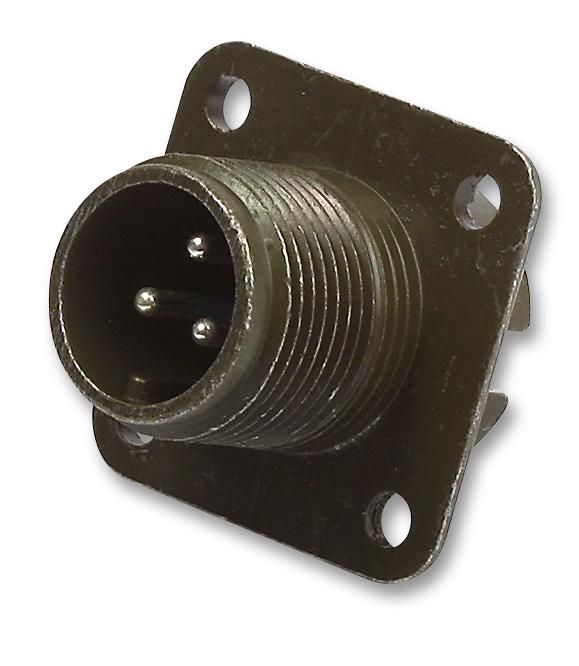

AMPHENOL INDUSTRIAL - 97-3102A-22-14P - Circular Connector, 97, Box Mount Receptacle, 19 Contacts, Solder Pin, Threaded, 22-14
- Product Range: 97 Series
- Circular Connector Shell Style: Box Mount Receptacle
- No. of Contacts: 19Contacts
- Circular Contact Type: Solder Pin
- Coupling Style: Threaded
- Insert Arrangement: 22-14
- Connector Body Material: Aluminium Alloy Body
- Connector Body Plating: Olive Drab Chromate over Cadmium
- Contact Material: Brass, Copper Alloy
- Contact Plating: Silver
- Insert Rotation: N
- Service Class: General Duty
- Equivalent Military Specification: MIL-DTL-5015 Series
- Approval Bodies: MIL Spec
- Cable Diameter Max: 1.4mm
- Cable Diameter Min: 0.8mm
- Current Rating: 13A
- External Width: 41.28mm
- IP / NEMA Rating: IP66
- Length: 34.11mm
- No. of Mating Cycles: 500
- Operating Temperature Max: 125°C
- Operating Temperature Min: -55°C
- PCB Hole Diameter: 3.25mm
- Panel Cutout Diameter: 36.53mm
- Panel Cutout Size: 31.75 mm
- Voltage Rating V DC: 700V
- Voltage Rating VAC: 700V
- Wire Size AWG Max: 22AWG
- Wire Size AWG Min: 16AWG
- Withstand Voltage: 2000V
- Working Voltage: 700V
