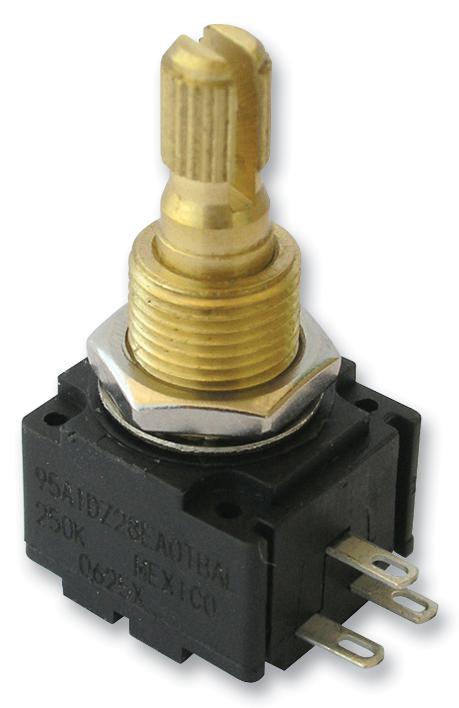

BOURNS - 95A1D-Z28-EA0/303L - Rotary Potentiometer, Guitar, 500 kohm, 1 Turns, Logarithmic, 250 mW, ± 20%, 95
- Track Resistance: 500kohm
- No. of Turns: 1Turns
- Track Taper: Logarithmic
- Power Rating: 250mW
- Resistance Tolerance: ± 20%
- Product Range: 95 Series
- Potentiometer Mounting: Bushing
- Shaft Diameter: 6.31mm
- No. of Gangs: 1
- Adjustment Type: Screwdriver Slot
- Shaft Length: 22.23mm
- SVHC: Lead (15-Jan-2019)
- Bush Thread Length: 11.05mm
- Contact Resistance Variation +: 1%
- Contact Resistance Variation -: 1%
- Electrical Angular Rotation Tolerance +: 5°
- Electrical Angular Rotation Tolerance -: 5°
- External Depth: 12.7mm
- External Length / Height: 15.88mm
- External Width: 15.88mm
- IP / NEMA Rating: IP40
- Mechanical Angular Rotation Tolerance +: 5°
- Mechanical Angular Rotation Tolerance -: 5°
- Operating Temperature Max: 125°C
- Operating Temperature Min: -40°C
- Operating Temperature Range: -40°C to +125°C
- Resistor Element Material: Conductive Plastic
- Rotation Electrical Angle: 225°
- Rotation Mechanical Angle: 300°
- Rotational Life Cycles: 100000
- Temperature Coefficient: ± 1000ppm/°C
