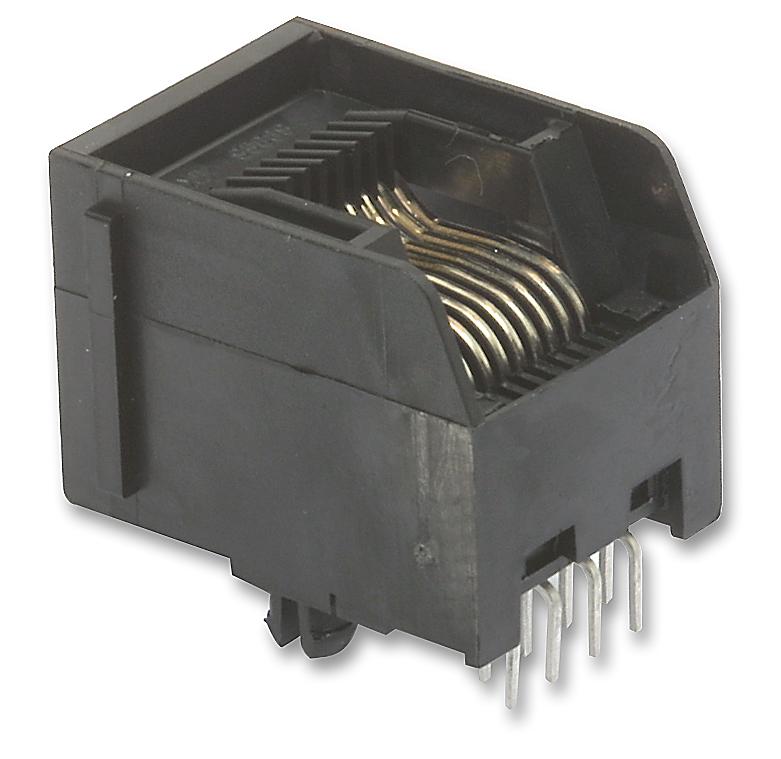

MOLEX - 95009-7881 - Modular Connector, RJ45 Jack, 1 x 1 (Port), 8P8C, Cat3, Through Hole Mount
- Modular Connector Type: RJ45 Jack
- Port Configuration: 1 x 1 Port
- No. of Positions / Loaded Contacts (per Port): 8P8C
- LAN Category: Cat3
- IP Rating: -
- Connector Mounting: Through Hole Mount
- Connector Orientation: Right Angle
- Shielding: Unshielded
- Magnetics: Without Magnetics
- LEDs: Without LED
- Light Pipes: Without Light Pipe
- Product Range: 95009 Series
- SVHC: No SVHC (15-Jan-2019)
- Colour: Black
- Connector Type: RJ45
- Contact Material: Phosphor Bronze
- Contact Plating: Gold Plated Contacts
- Contact Resistance: 20mohm
- Contact Termination: Through Hole Right Angle
- Contact Termination Type: Through Hole
- Current Rating: 1.5A
- External Depth: 20.6mm
- External Length / Height: 15.62mm
- External Width: 16.38mm
- Flammability Rating: UL94V-0
- Gender: Jack
- Height: 15.62mm
- Insulation Resistance: 500Mohm
- Material: Polyester
- No. of Contacts: 8Contacts
- No. of Ports: 1Ports
- No. of Positions: 8Ways
- Operating Temperature Max: 80°C
- Operating Temperature Min: -40°C
- Panel Cutout Size: 16.38 x 11.56 mm
