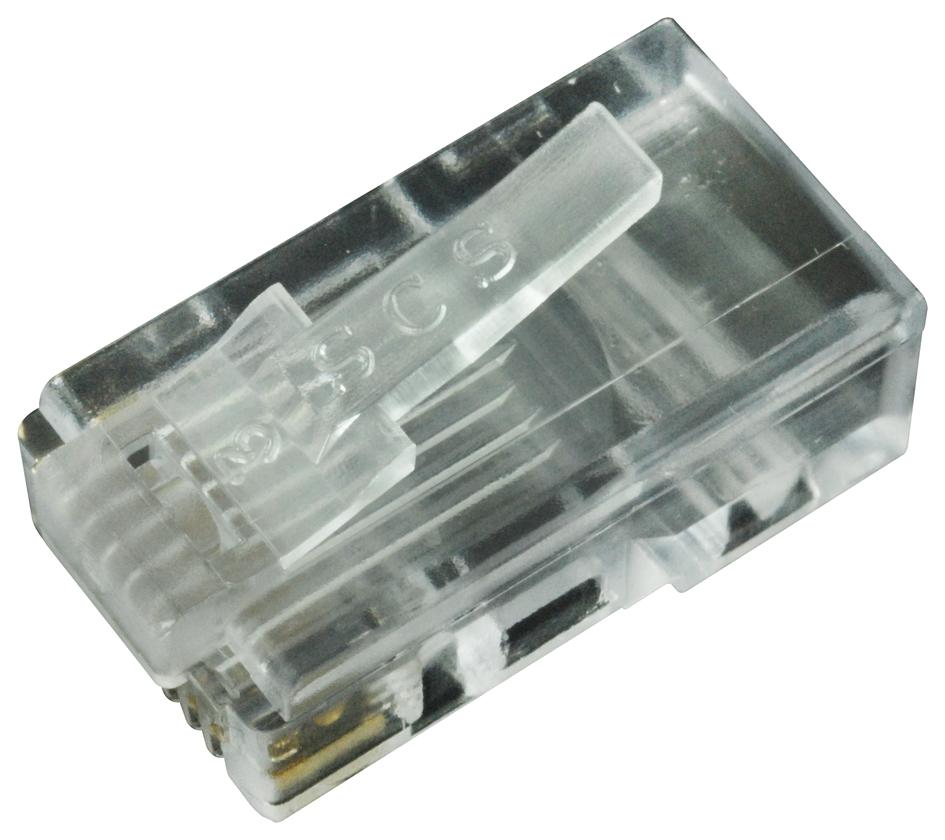

STEWART CONNECTOR - 937-SP-3088R - Modular Connector, RJ45 Plug, 1 x 1 (Port), 8P8C, Cable Mount
- Modular Connector Type: RJ45 Plug
- Port Configuration: 1 x 1 Port
- No. of Positions / Loaded Contacts (per Port): 8P8C
- LAN Category: -
- IP Rating: -
- Connector Mounting: Cable Mount
- Connector Orientation: Vertical
- Shielding: Unshielded
- Magnetics: Without Magnetics
- LEDs: Without LED
- Light Pipes: Without Light Pipe
- Product Range: 30 Series
- SVHC: No SVHC (15-Jun-2015)
- Approval Bodies: CSA, UL
- Body Plating: Gold
- Case Material: Polycarbonate
- Colour: Clear
- Connector Type: RJ45
- Contact Material: Phosphor Bronze
- Contact Plating: Gold Plated Contacts
- Contact Resistance: 10mohm
- Contact Termination: Crimp
- Contact Termination Type: Crimp
- Current Rating: 1.5A
- External Depth: 7.9mm
- External Length / Height: 22.5mm
- External Width: 11.7mm
- Flammability Rating: UL94V-0
- Gender: Plug
- Insulation Resistance: 500Mohm
- No. of Contacts: 8Contacts
- No. of Mating Cycles: 1000
- No. of Ports: 1Ports
- No. of Positions: 8Ways
- Operating Temperature Max: 125°C
- Operating Temperature Min: -40°C
- Wire Size: 26AWG
