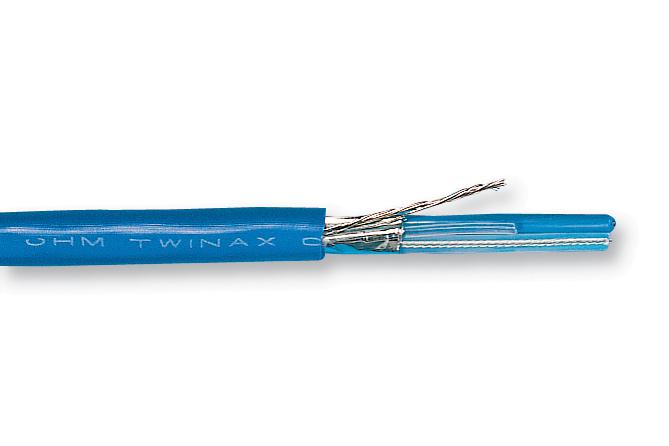

BELDEN - 9271 060500 - Twinaxial Cable, Computer Instrumentation, 25 AWG, 0.163 mm², 124 ohm, Blue, 500 ft, 152.4 m
- Wire Gauge: 25AWG
- Conductor Area CSA: 0.163mm²
- Impedance: 124ohm
- Jacket Colour: Blue
- Reel Length (Imperial): 500ft
- Reel Length (Metric): 152.4m
- No. of Max Strands x Strand Size: 7 x 0.18mm
- Conductor Material: Copper
- Jacket Material: PVC
- External Diameter: 6.1mm
- Product Range: -
- SVHC: No SVHC (15-Jan-2018)
- Alpha Type Number: 9821 EQUIVALENT
- Attenuation @ 100MHz: 16.4dB
- Attenuation @ 10MHz: 5.6dB
- Attenuation @ 1MHz: 2dB
- Attenuation @ 400MHz: 31.5dB
- Attenuation @ 50MHz: 11.8dB
- Belden Type Number: 9271
- Cable Type: Foil Shield
- Cable UL Style Number: UL2092
- Capacitance per Metre: 40pF/m
- Conductor Make-up: 7 / 33AWG
- Drain Wire Type: Internal
- No. of Cores: 2Core
- Outer Diameter: 6.1mm
- Screen Type Primary: Aluminium / Polyester
- Secondary Insulation Colour: Blue
- Secondary Insulation Material: PVC
- Velocity of Propagation (%): 66%
- Wire Size: 25AWG
