9174 BK005 Cable, Coax, 30.5m, Black, RG174/U Alpha Wire

ALPHA WIREUGS :9174 BK005 Code de commande:1302764

Prix:
Prix ​​promotionnel€56,44

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (98 unité)

Documents et téléchargements

description

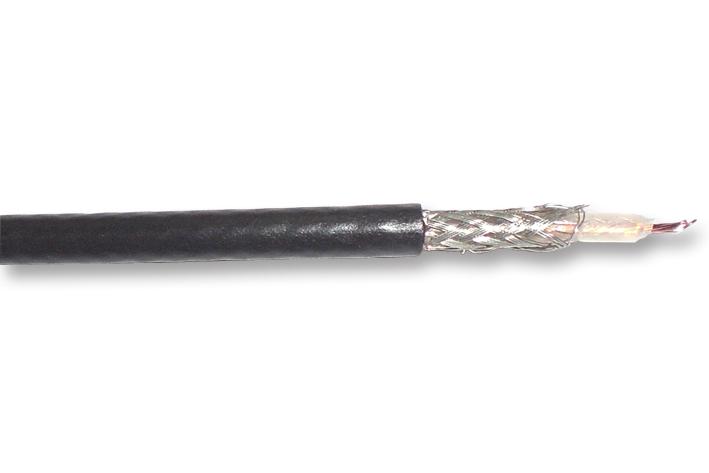

ALPHA WIRE - 9174 BK005 - Coaxial Cable, RG174, 26 AWG, 0.14 mm², 50 ohm, 100 ft, 30.5 m

  • Coaxial Cable Type: RG174
  • Wire Gauge: 26AWG
  • Conductor Area CSA: 0.14mm²
  • Impedance: 50ohm
  • Reel Length (Imperial): 100ft
  • Reel Length (Metric): 30.5m
  • Jacket Colour: Black
  • Jacket Material: PVC
  • Conductor Material: Tinned Copper
  • No. of Max Strands x Strand Size: 7 x 0.16mm
  • External Diameter: 2.54mm
  • Product Range: -
  • SVHC: No SVHC (15-Jan-2019)
  • Attenuation @ 100MHz: 2.8dB
  • Attenuation @ 10MHz: 0.9dB
  • Attenuation @ 1GHz: 8.5dB
  • Attenuation @ 200MHz: 3.7dB
  • Attenuation @ 400MHz: 17.5dB
  • Attenuation @ 50MHz: 1.9dB
  • Capacitance per Metre: 102pF/m
  • Dielectric Insulation Diameter: 1.52mm
  • Dielectric Material: Solid Polyethylene
  • Primary Screen material: Tinned Copper Braid
