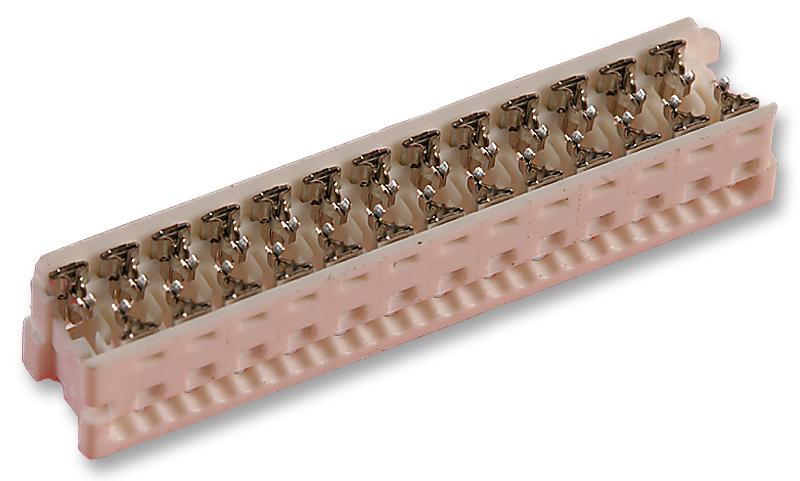

MOLEX - 90327-0326 - IDC Connector, IDC Receptacle, Female, 1.27 mm, 2 Row, 26 Contacts, Cable Mount
- Pitch Spacing: 1.27mm
- No. of Contacts: 26Contacts
- Gender: Receptacle
- Product Range: Picoflex 90327 Series
- Contact Termination Type: IDC / IDT
- No. of Rows: 2Rows
- Contact Plating: Tin Plated Contacts
- Contact Material: Phosphor Bronze
- SVHC: No SVHC (15-Jan-2019)
- Colour: White
- Contact Current Rating: 1.2A
- Contact Resistance: 10mohm
- External Width: 31.75mm
- Flammability Rating: UL94V-0
- Material: Polyester
- Operating Temperature Max: 105°C
- Operating Temperature Min: -25°C
- Voltage Rating VAC: 250V
- Wire Size AWG Max: 26AWG
- Wire Size AWG Min: 28AWG
- Withstand Voltage: 750V
