90325-0008 Connector, Header, 8Pos, 1ROW, 1.27mm Molex

MOLEXUGS :90325-0008 Code de commande:673237

Prix:
Prix ​​promotionnel€0,89

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (4262 unité)

Documents et téléchargements

description

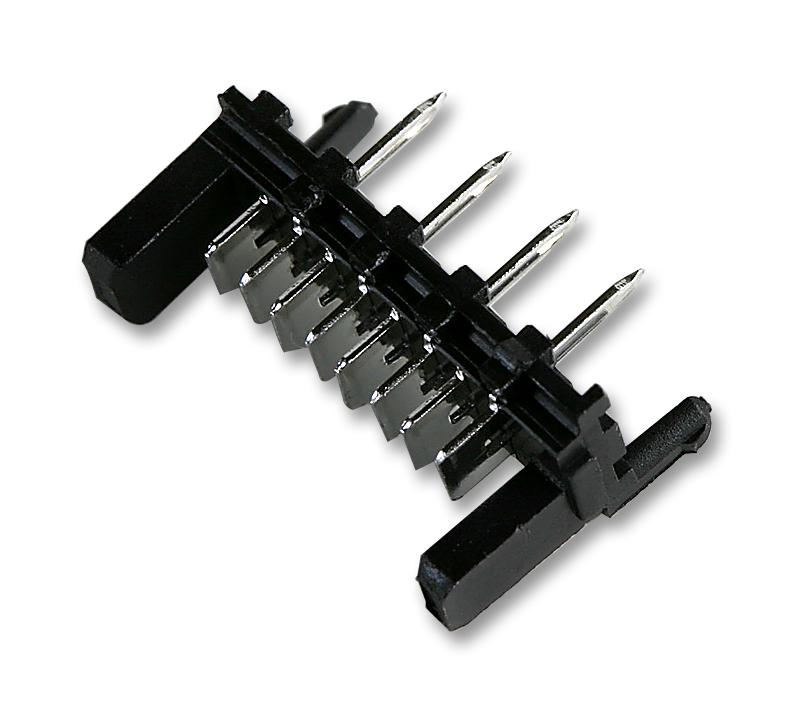

MOLEX - 90325-0008 - Pin Header, Wire-to-Board, 1.27 mm, 1 Rows, 8 Contacts, Through Hole Straight, Picoflex 90325

  • Pitch Spacing: 1.27mm
  • No. of Contacts: 8Contacts
  • Gender: Header
  • Product Range: Picoflex 90325 Series
  • Contact Termination Type: Through Hole
  • No. of Rows: 1Rows
  • Contact Plating: Tin Plated Contacts
  • Contact Material: Brass
  • SVHC: No SVHC (15-Jan-2019)
  • Colour: Black
  • Contact Resistance: 10mohm
  • Current Rating: 1.2A
  • External Width: 8.89mm
  • Fixing Centres: 12.49mm
  • Flammability Rating: UL94V-0
  • Material: Polyester
  • Operating Temperature Max: 105°C
  • Operating Temperature Min: -25°C
  • Voltage Rating VAC: 250V
  • Wire Size AWG Max: 26AWG
  • Wire Size AWG Min: 28AWG
  • Withstand Voltage: 750V
  • Working Voltage: 250V
