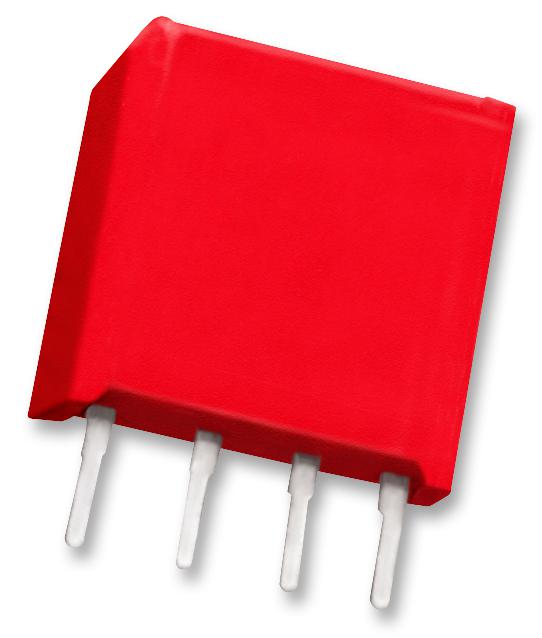

COTO TECHNOLOGY - 9012-12-11 - Reed Relay, SPST-NO, 12 VDC, 9012, Through Hole, 750 ohm, 500 mA
- Contact Configuration: SPST-NO
- Coil Voltage: 12VDC
- Product Range: 9012 Series
- Relay Mounting: Through Hole
- Coil Resistance: 750ohm
- Switching Current Max: 500mA
- Switching Voltage Max: 200V
- SVHC: No SVHC (15-Jan-2019)
- Coil Voltage Max: 15VDC
- Coil Voltage VDC Nom: 12V
- Contact Current DC Max: 500mA
- Contact Resistance: 120mohm
- Contact Voltage DC Max: 200V
- External Depth: 10.16mm
- External Height: 10.16mm
- External Length / Height: 10.16mm
- External Width: 3.81mm
- Insulation Resistance: 10000Mohm
- Must Actuate Voltage: 9VDC
- Must Release Voltage: 1VDC
- No. of Mechanical Operations: 1000000000
- Operating Temperature Max: 85°C
- Operating Temperature Min: -20°C
- Operating Time: 0.35ms
- Release Time: 0.1ms
- Switch Current Max: 500mA
- Switch Power Max: 10W
- Type: Magnetic Shield - With Diode
