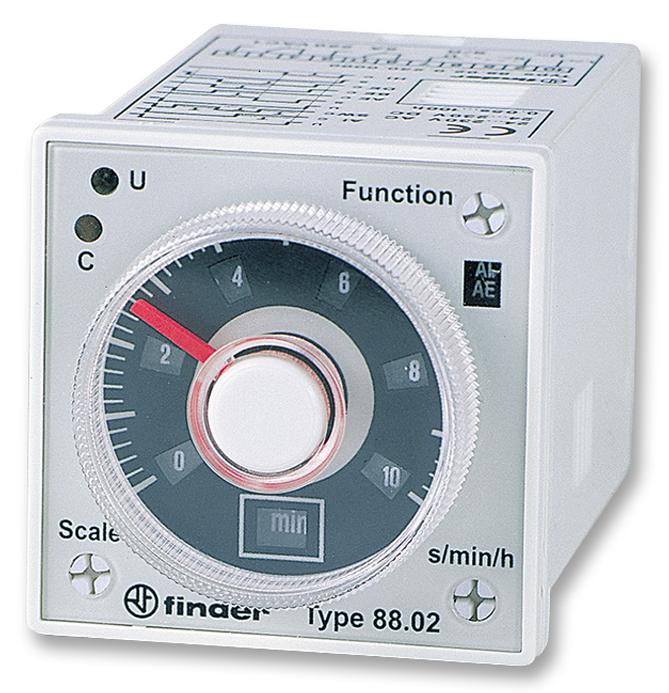

FINDER - 88.02.0.230.0002 - Analogue Timer, Plug In, 88 Series, Multifunction, 16 Ranges, 0.05 s, 100 h, 2 Changeover Relays
- Product Range: 88 Series
- Timer Functions: Multifunction
- No. of Timing Ranges: 16Ranges
- Time Min: 0.05s
- Time Max: 100h
- Timer Output: 2 Changeover Relays
- Supply Voltage Max: 230V
- Current Rating Nom: 500mA
- Connection / Termination: Plug-In
- Panel Cutout Height: 45mm
- Panel Cutout Width: 45mm
- SVHC: No SVHC (15-Jan-2019)
- Adjustment Type: Rotary
- Contact Configuration: DPDT
- Contact Current AC Max: 8A
- Contact Voltage AC Max: 250V
- Delay Time Range: 0.05s to 100h
- External Depth: 79.5mm
- External Length / Height: 48mm
- External Width: 48mm
- Input Voltage: 24VAC
- Input Voltage Max: 230VAC
- Input Voltage Min: 24VDC
- Load Current: 8A
- No. of Pins: 11Pins
- Nom Input Voltage: 230V
- Operating Temperature Max: 55°C
- Operating Temperature Min: -10°C
- Output Voltage: 250VAC
- Relay Mounting: Panel
- Supply Voltage: 230VAC
- Switch Current Max: 15A
- Switching Current Max: 15A
- Timing Adjustment: Thumbwheel Switch
