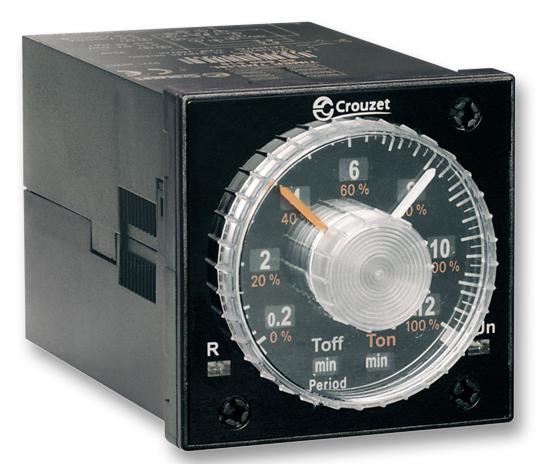

CROUZET - 88 886 516 - Analogue Timer, TMR 48 L, Multifunction, 14 Ranges, 0.02 s, 300 h, 2 Changeover Relays
- Product Range: TMR 48 L Series
- Timer Functions: Multifunction
- No. of Timing Ranges: 14Ranges
- Time Min: 0.02s
- Time Max: 300h
- Timer Output: 2 Changeover Relays
- Supply Voltage Max: 240V
- Current Rating Nom: 5A
- Connection / Termination: Plug-In
- Panel Cutout Height: 45mm
- Panel Cutout Width: 45mm
- Accuracy %: 0.5%
- Adjustment Type: Rotary
- Coil Voltage VAC Nom: 230V
- Coil Voltage VDC Nom: 24V
- Contact Configuration: DPDT
- Contact Current AC Max: 5A
- Contact Voltage AC Max: 250V
- Delay Time Range: 0.02s to 300h
- External Depth: 81.3mm
- External Length / Height: 48mm
- External Width: 48mm
- Mechanical Life: 100000
- No. of Pins: 11Pins
- Nom Input Voltage: 240V
- Operating Temperature Max: 55°C
- Operating Temperature Min: -20°C
- Operating Time Range: 14 ranges from 0.02s to 300Hr
- Relay Mounting: Panel
- Repeat Accuracy +: 0.5%
- Repeat Accuracy -: 0.5%
- Reset Time: 100ms
- Supply Voltage AC Max: 240VAC
- Supply Voltage AC Min: 24VAC
- Supply Voltage DC Max: 240VDC
- Supply Voltage DC Min: 12VDC
- Type: TMR48L
