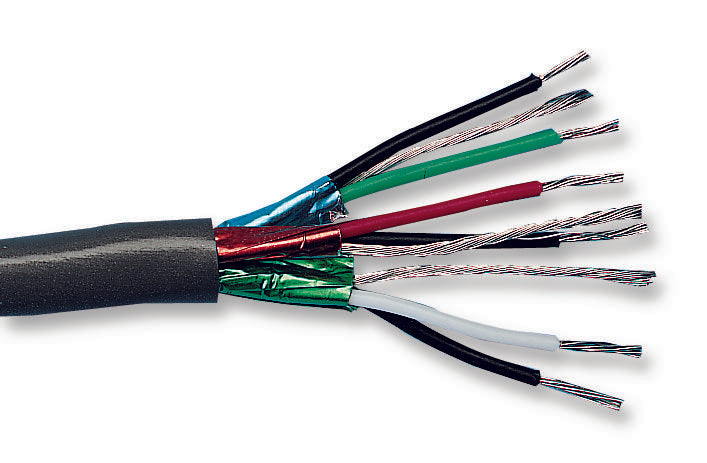

BELDEN - 8777 060U500 - Multipair Cable, Audio Control, Screened, 3 Pair, 22 AWG, 0.325 mm², 498.69 ft, 152.4 m
- Cable Shielding: Screened
- No. of Pairs: 3 Pair
- Wire Gauge: 22AWG
- Conductor Area CSA: 0.325mm²
- Reel Length (Imperial): 498.69ft
- Reel Length (Metric): 152.4m
- Jacket Colour: Chrome
- No. of Max Strands x Strand Size: 7 x 0.255mm
- Voltage Rating: 300V
- Jacket Material: PVC
- Conductor Material: Tinned Copper
- External Diameter: 6.93mm
- Product Range: -
- SVHC: No SVHC (15-Jan-2018)
- Alpha Type Number: 6010C EQUIVALENT
- Belden Type Number: 8777
- Cable Type: Foil Shield
- Cable UL Style Number: UL2919
- Complex Cable Make-Up: 3 x 7/30
- Conductor Make-up: 7 / 30AWG
- Core - Core Capacitance: 98pF/m
- Current Rating: 2A
- Drain Wire Type: 22AWG (7/30AWG)
- Flammability Rating: VW-1
- No. of Cores: 6Core
- Outer Diameter: 6.93mm
- Primary Insulation Thickness: 0.25mm
- Resistance per Metre: 49.2ohm/km
- Screen Resistance: 34.8ohm/km
- Screen Type Primary: Aluminium Polyester
- Secondary Insulation Colour: Chrome
- Secondary Insulation Material: PVC
- Secondary Insulation Thickness: 1.22mm
- Wire Size: 22AWG
