87756-7 Contact, Crimp, Receptacle, 26-22AWG Amp - Te Connectivity

AMP - TE CONNECTIVITYUGS :87756-7 Code de commande:1823218

Prix:
Prix ​​promotionnel€0,62

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (211250 unité)

Documents et téléchargements

description

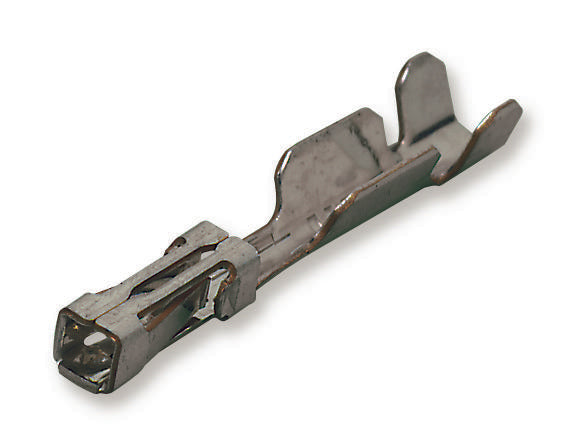

AMP - TE CONNECTIVITY - 87756-7 - Contact, AMPMODU Mod IV, Socket, Crimp, 22 AWG, Tin Plated Contacts, Mod IV Series Connectors

  • Product Range: AMPMODU Mod IV Series
  • Contact Gender: Socket
  • Contact Termination Type: Crimp
  • Wire Size AWG Max: 22AWG
  • Contact Plating: Tin Plated Contacts
  • For Use With: Mod IV Series Connectors
  • Wire Size AWG Min: 26AWG
  • Contact Material: Copper Alloy
  • SVHC: No SVHC (15-Jan-2018)
  • Cable Diameter Max: 0.64mm
  • Cable Diameter Min: 0.4mm
  • Contact Termination: Crimp
  • Current Rating: 3A
  • External Length / Height: 11.3mm
  • Gender: Receptacle
  • Height: 11.3mm
  • Operating Temperature Max: 105°C
  • Operating Temperature Min: -65°C
  • Wire Area Size Max: 0.4m²
  • Wire Area Size Min: 0.12m²
  • Wire Size: 22AWG
  • Wire Size (AWG): 26AWG to 22AWG
