86093968114755V1LF Socket, DIN41612, Class 2, C, 96WAY Amphenol ICC

AMPHENOL ICCUGS :86093968114755V1LF Code de commande:1211669

Prix:
Prix ​​promotionnel€8,00

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (866 unité)

Documents et téléchargements

description

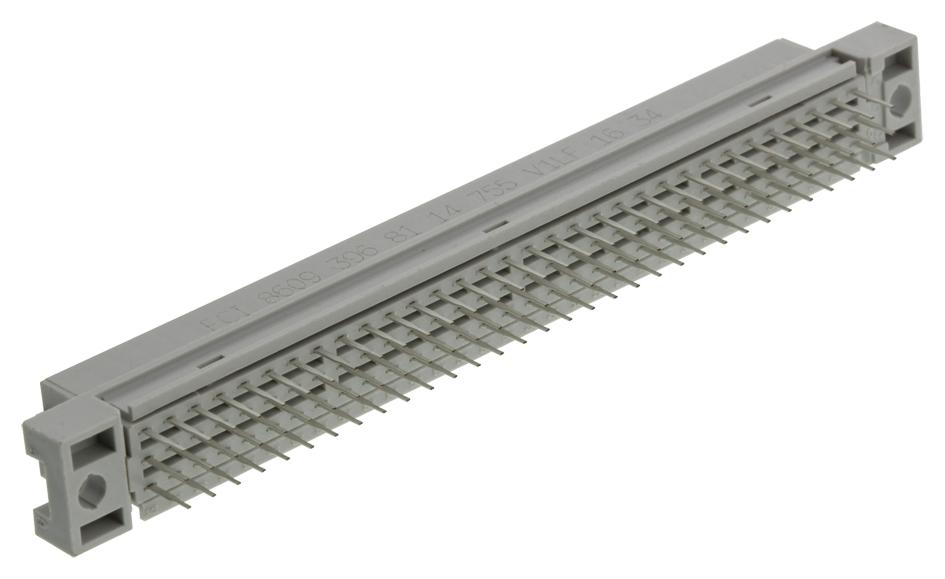

AMPHENOL COMMUNICATIONS SOLUTIONS - 86093968114755V1LF - DIN 41612 Connector, 96 Contacts, Receptacle, 2.54 mm, 3 Row, a + b + c

  • Product Range: -
  • No. of Contacts: 96Contacts
  • Gender: Receptacle
  • Pitch Spacing: 2.54mm
  • No. of Rows: 3 Row
  • Rows Loaded: a + b + c
  • Contact Plating: Gold Plated Contacts
  • Contact Material: Copper Alloy
  • No. of Mating Cycles: 400
  • SVHC: No SVHC (15-Jan-2019)
  • Colour: Light Grey
  • Contact Resistance: 15mohm
  • Contact Termination: Solder
  • Contact Termination Type: Solder
  • Flammability Rating: UL94V-0
  • Insulation Resistance: 1000000Mohm
  • Lead Spacing: 2.54mm
  • Material: Polyester
  • Mating Force: 90N
  • No. of Rows: 3Rows
  • Operating Temperature Max: 125°C
  • Operating Temperature Min: -65°C
  • Termination Method: Solder
  • Voltage Rating VAC: 330V
  • Working Voltage: 250V
