85106EC106P50 Plug With Cable, Clamp, 6Way Souriau-SUNBANK / Eaton

SOURIAU-SUNBANK / EATONUGS :85106EC106P50 Code de commande:3822928

Prix:
Prix ​​promotionnel€52,41

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (51 unité)

Documents et téléchargements

description

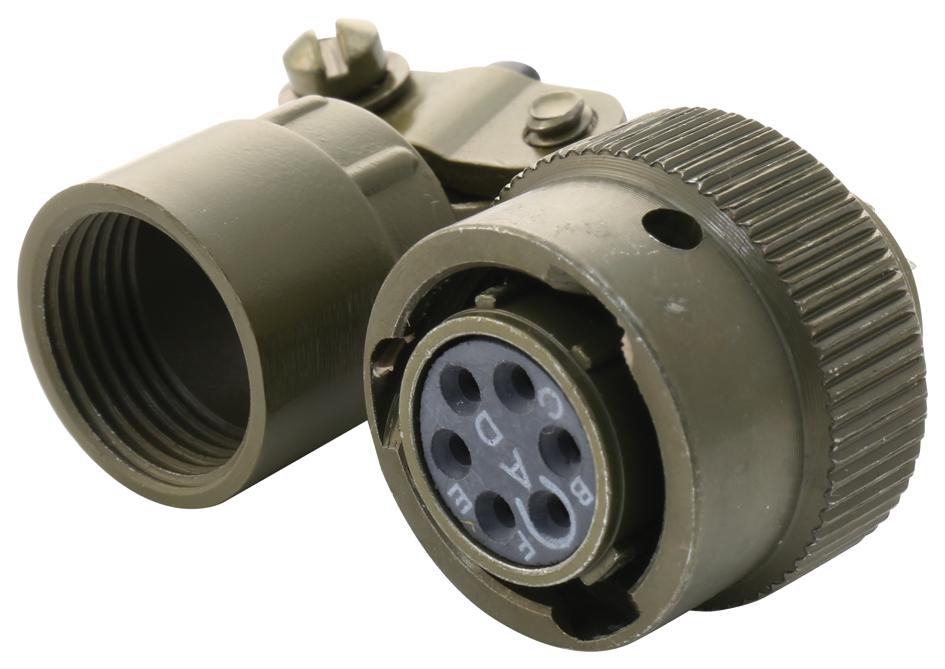

SOURIAU-SUNBANK / EATON - 85106EC106P50 - Circular Connector, Souriau 851, Cable Mount Plug, 6 Contacts, Solder Pin, Bayonet, 10-6

  • Product Range: 851 Series
  • Circular Connector Shell Style: Cable Mount Plug
  • No. of Contacts: 6Contacts
  • Circular Contact Type: Solder Pin
  • Coupling Style: Bayonet
  • Insert Arrangement: 10-6
  • Connector Body Material: Aluminium Alloy Body
  • Connector Body Plating: Olive Green Cadmium
  • Contact Material: Copper Alloy
  • Contact Plating: Gold
  • Insert Rotation: N
  • Service Class: Environmentally Sealed
  • Equivalent Military Specification: MIL-DTL-26482 Series I
  • SVHC: Cadmium (15-Jan-2019)
  • Connector Insert Type: 10-6
  • Connector Mounting: Cable Mount
  • Connector Shell Size: 10
  • Connector Type: Circular Industrial
  • Contact Gender: Pin
  • Contact Plating: Gold Plated Contacts
  • Contact Resistance: 5ohm
  • Contact Termination: Solder
  • Contact Termination Type: Solder
  • Gender: Plug
  • Insulation Resistance: 5000ohm
  • Male Contact Material: Copper Alloy
  • Male Contact Plating: pre tininng or gold
  • No. of Mating Cycles: 500
  • Operating Temperature Max: 125°C
  • Operating Temperature Min: -55°C
