8432-21B1-RK-TP Socket Ic, PLCC, 32WAY 3M

3MUGS :8432-21B1-RK-TP Code de commande:1183020

Prix:
Prix ​​promotionnel€3,40

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (73 unité)

Documents et téléchargements

description

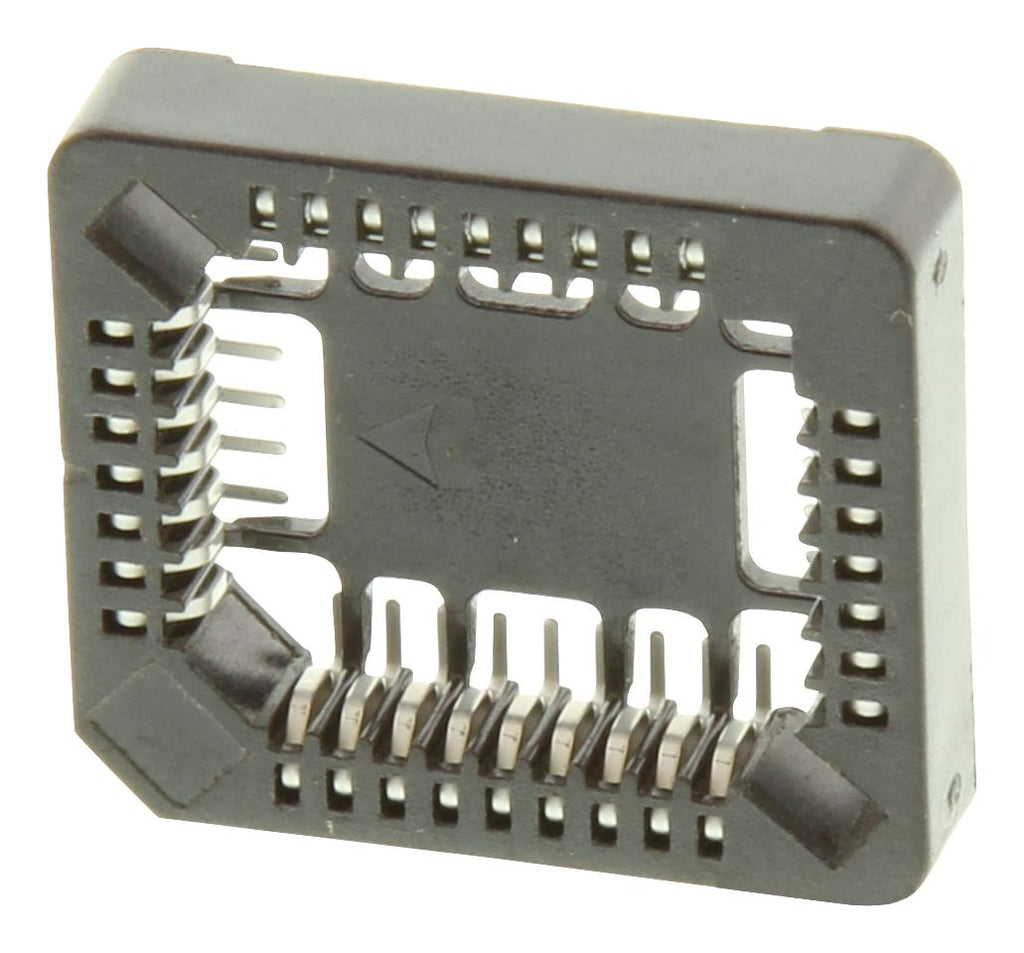

3M - 8432-21B1-RK-TP - IC & Component Socket, 32 Contacts, PLCC Socket, 1.27 mm, 8400, Copper

  • No. of Contacts: 32Contacts
  • Connector Type: PLCC Socket
  • Pitch Spacing: 1.27mm
  • Product Range: 8400 Series
  • Row Pitch: -
  • Contact Material: Copper
  • Contact Plating: Tin Plated Contacts
  • SVHC: No SVHC (15-Jan-2018)
  • Connector Mounting Orientation: PC Board
  • Contact Resistance: 30mohm
  • Contact Termination: Surface Mount Vertical
  • Contact Termination Type: Surface Mount
  • External Depth: 20.32mm
  • External Length / Height: 5.08mm
  • External Width: 17.78mm
  • Flammability Rating: UL94V-0
  • Lead Spacing: 1.27mm
  • Mating Force: 0.17kgf
  • Operating Temperature Max: 125°C
  • Operating Temperature Min: -55°C
  • Pin Format: PLCC
