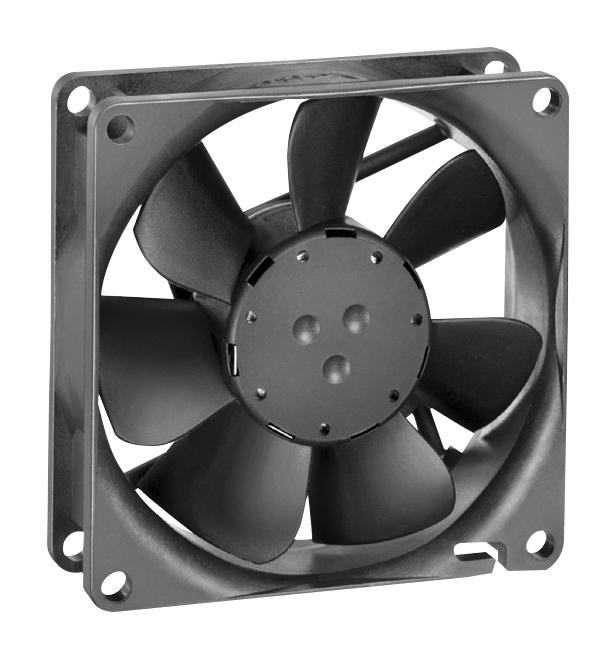

EBM-PAPST - 8412NGMLV - DC Axial Fan, 12 V, Square, 80 mm, 25 mm, Sleeve Bearing, 26.5 CFM
- Supply Voltage: 12V
- Current Type: DC
- Fan Frame Size: 80mm
- External Depth: 25mm
- Noise Rating: 19dBA
- Flow Rate - Imperial: 26.5cu.ft/min
- Flow Rate - Metric: 45m³/h
- Bearing Type: Sleeve
- Power Connection Type: 2 Lead Wires
- Current Rating: -
- Product Range: 8400N Series
- Power Rating: -
- IP Rating: IP54, IP68
- SVHC: No SVHC (15-Jan-2019)
- Approval Bodies: VDE
- External Height: 80mm
- External Width: 80mm
- Frame Dimensions: 80mm x 80mm x 25mm
- Lead Length: 310mm
- Operating Temperature Max: 65°C
- Operating Temperature Min: -20°C
- Operating life Time: 27500h
- Panel Cutout Diameter: 77mm
- Power Consumption: 1.5W
- Resistance @ Tripping Temp: 30ohm
- Supply Voltage DC Max: 14V
- Supply Voltage DC Min: 8V
- Tripping Temperature: 50°C
- Type: Slim,80mm
