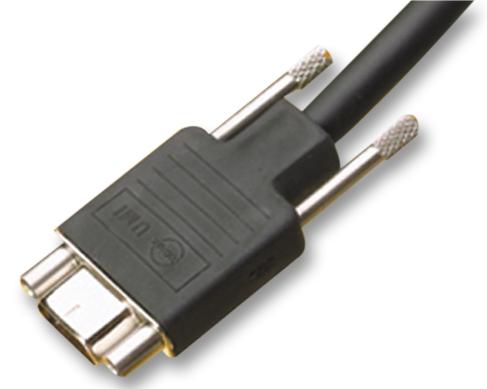

MOLEX - 83422-9018 - Micro D Cable Assembly, Micro-D Receptacle to Free End, 15 Ways, 6 ft, 1.83 m, Black, 83422
- Connector to Connector: Micro-D Receptacle to Free End
- No. of Positions: 15Ways
- Cable Length - Imperial: 6ft
- Cable Length - Metric: 1.83m
- Jacket Colour: Black
- Product Range: 83422 Series
- SVHC: No SVHC (15-Jan-2019)
- Approval Bodies: CSA, UL
- Approval Category: E34763
- Cable Assembly Type: Micro D
- Case Material: Nickel Plated
- Colour: Black
- Connector Type A: Micro-D Socket, 15 Way
- Connector Type B: Free End
- Contact Resistance: 8mohm
- Contact Termination: Crimp
- Current Rating: 1A
- DC Current Max: 3A
- Flammability Rating: UL94V-0
- Gender: Receptacle
- Insulation Resistance: 5000Mohm
- Insulator Material: PPS (Polyphenylene Sulphide) Glass Filled
- Length: 1.83m
- Material: Stainless Steel
- Mounting Orientation: Horizontal
- No. of Contacts: 15Contacts
- No. of Mating Cycles: 500
- Operating Temperature Max: +125°C
- Operating Temperature Min: -55°C
- Pitch Spacing: 1.27mm
- Wire Size AWG Max: 28AWG
- Withstand Voltage: 650V
- Working Voltage: 350V
