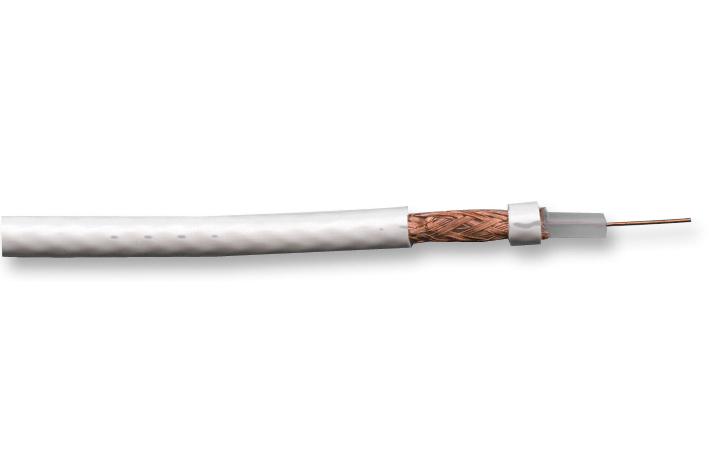

BELDEN - 83265-009100 - Coaxial Cable, High Temperature, MIL-C-17, RG178B, 30 AWG, 50 ohm, 100 ft, 30.5 m
- Coaxial Cable Type: RG178B
- Wire Gauge: 30AWG
- Conductor Area CSA: -
- Impedance: 50ohm
- Reel Length (Imperial): 100ft
- Reel Length (Metric): 30.5m
- Jacket Colour: White
- Jacket Material: FEP
- Conductor Material: SPCCS (Silver Plated Copper Coated Steel)
- No. of Max Strands x Strand Size: 7 x 38AWG
- External Diameter: 1.8mm
- Product Range: 83265 Coax
- SVHC: No SVHC (15-Jan-2018)
- Attenuation @ 100MHz: 45.9dB
- Attenuation @ 10MHz: 18.4dB
- Attenuation @ 1GHz: 150.9dB
- Attenuation @ 1MHz: 8.5dB
- Attenuation @ 200MHz: 62.3dB
- Attenuation @ 400MHz: 91.9dB
- Attenuation @ 50MHz: 34.5dB
- Attenuation @ 900MHz: 139.4dB
- Conductor Make-up: 7 / 38
- Core Diameter: 0.84mm
- Core-Screen Capacitance: 95.1pF/m
- Operating Temperature Max: 200°C
- Operating Temperature Min: -70°C
- Outer Diameter: 1.8mm
- Secondary Insulation Material: FEP
- Secondary Screen Material: Silver Plated Copper
- Velocity of Propagation (%): 69.5%
- Wire Size: 30AWG
