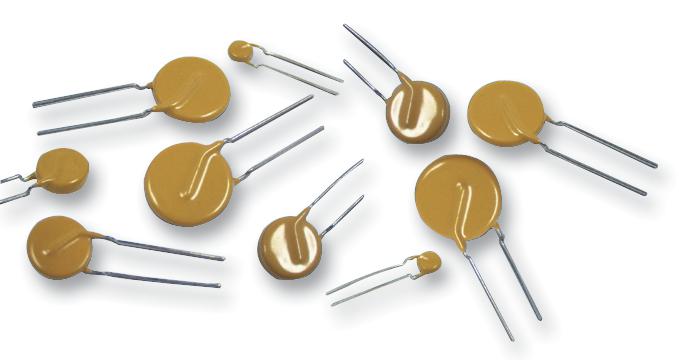

820541311 Varistor Standard 14mm 130VRMS Wurth Elektronik

WURTH ELEKTRONIKUGS :820541311 Code de commande:1636422

Prix:
Prix ​​promotionnel€1,58

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (77 unité)

Documents et téléchargements

description

WURTH ELEKTRONIK - 820541311 - TVS Varistor, 130 V, 170 V, WE-VD, 340 V, Disc 14mm, Metal Oxide Varistor (MOV)

  • Voltage Rating VAC: 130V
  • Voltage Rating V DC: 170V
  • Product Range: WE-VD Series
  • Clamping Voltage Vc Max: 340V
  • Varistor Case Style: Disc 14mm
  • Varistor Type: Metal Oxide Varistor (MOV)
  • Peak Surge Current @ 8/20µs: 4.5kA
  • Operating Temperature Min: -40°C
  • Operating Temperature Max: 125°C
  • Peak Energy (10/1000uS): 57J
  • Automotive Qualification Standard: -
  • SVHC: No SVHC (15-Jan-2019)
  • Body Diameter: 14mm
  • Capacitance: 840pF
  • Clamping Voltage: 340V
  • Clamping Voltage @ 8/20µs Max: 340V
  • Operating Temperature Range: -40°C to +125°C
  • Peak Pulse Current IPP @ 8/20µs: 4500A
  • Suppressor Type: Varistor
  • Surge Current: 4.5kA
