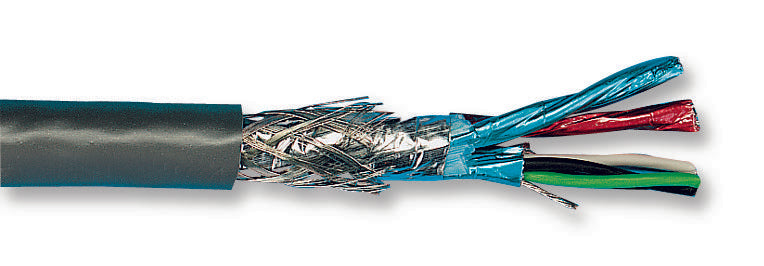

BELDEN - 8164 060500 - Multipair Cable, Screened, 4 Pair, 24 AWG, 0.2 mm², 498.69 ft, 152.4 m
- Cable Shielding: Screened
- No. of Pairs: 4 Pair
- Wire Gauge: 24AWG
- Conductor Area CSA: 0.2mm²
- Reel Length (Imperial): 498.69ft
- Reel Length (Metric): 152.4m
- Jacket Colour: Grey
- No. of Max Strands x Strand Size: 7 x 0.2mm
- Voltage Rating: 300V
- Jacket Material: PVC
- Conductor Material: Tinned Copper
- External Diameter: 9.86mm
- Product Range: -
- SVHC: No SVHC (15-Jan-2018)
- Alpha Type Number: 6318 EQUIVALENT
- Approval Bodies: UL
- Belden Type Number: 8164
- Cable Type: Foil + Braided Shield
- Cable UL Style Number: UL2493
- Complex Cable Make-Up: 8 x 7/32
- Conductor Make-up: 7 / 32AWG
- Core-Screen Capacitance: 41pF/m
- Current Rating: 2.5A
- Drain Wire Type: 24 AWG
- Flammability Rating: VW-1
- Impedance: 100ohm
- No. of Cores: 8Core
- Outer Diameter: 9.86mm
- Screen Type Primary: Aluminium / Polyester
- Screen Type, Secondary: Aluminium/Polyester foil and tinned copper braid
- Secondary Insulation Colour: Grey
- Secondary Insulation Material: PVC
- Standard: VW-1
- Velocity of Propagation (%): 78%
- Wire Size: 24AWG
