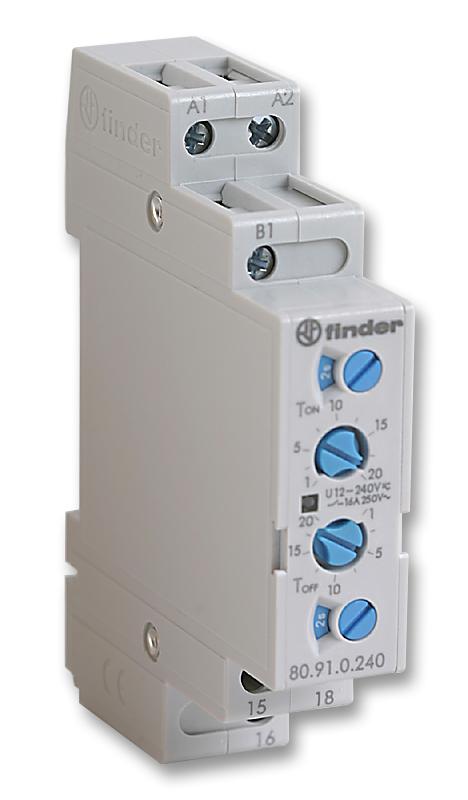

FINDER - 80.91.0.240.0000 - Time Delay Relay, 100 ms, 24 h, 80 Series, SPDT, 16 A
- Product Range: 80 Series
- Timer Functions: Flasher
- Time Min: 0.1s
- Time Max: 24h
- No. of Timing Ranges: 6Ranges
- Timer Output: 1 Changeover Relay
- Supply Voltage Max: 240V
- Current Rating Nom: 500mA
- Connection / Termination: Screw Terminals
- SVHC: No SVHC (15-Jan-2019)
- Adjustment Type: Screwdriver Slot
- Coil Voltage Max: 240V
- Coil Voltage Min: 12V
- Coil Voltage VAC Nom: 240V
- Coil Voltage VDC Nom: 240V
- Connector A Contact Material: AgCdO
- Contact Configuration: SPCO
- Contact Current AC Max: 16A
- Contact Voltage AC Max: 250V
- Current Rating: 16A
- Delay Time Range: 0.1s to 20h
- External Depth: 56.5mm
- External Length / Height: 88.8mm
- External Width: 17.5mm
- Height: 84mm
- IP / NEMA Rating: IP20
- Nom Input Voltage: 240V
- Operating Temperature Max: 50°C
- Operating Temperature Min: -10°C
- Operating Time Range: 0.1 - 2sec, min, hour, 1 - 20sec, min, hour
- Power Rating: 1.8VA
- Relay Mounting: DIN Rail
- Supply Voltage Min: 12V
- Switch Current Max: 30A
- Switching Current Max: 30A
- Voltage Rating VAC: 250V
