76-9510/4044 Pushbutton Switch, 15mm ITW Switches

ITW SWITCHESUGS :76-9510/4044 Code de commande:4389463

Prix:
Prix ​​promotionnel€48,76

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (738 unité)

Documents et téléchargements

description

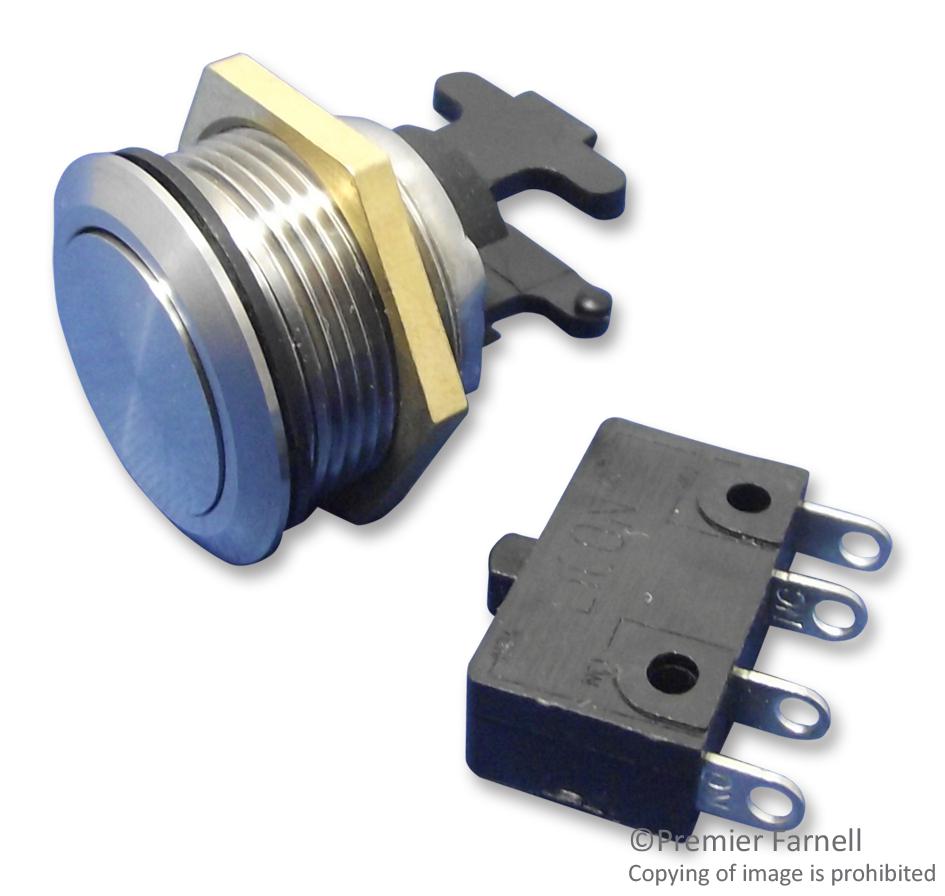

ITW SWITCHES - 76-9510/4044 - Vandal Resistant Switch, 76-95, 19.3 mm, DPDT-DB, Momentary, Flush, Natural

  • Contact Configuration: DPDT-DB
  • Actuator / Cap Colour: Natural
  • Product Range: 76-95 Series
  • Switch Operation: Momentary
  • Illumination Colour: Non-illuminated
  • Switch Terminals: Solder Lug
  • Contact Current Max: 10A
  • Contact Voltage AC Max: 250V
  • Operating Force: 2.6N
  • Contact Voltage DC Max: 5V
  • SVHC: No SVHC (17-Dec-2015)
  • Behind Panel Depth: 31mm
  • Contact Current AC Max: 10A
  • Contact Current DC Max: 10mA
  • Contact Resistance: 25mohm
  • Contact Voltage VAC: 250V
  • Contact Voltage VDC: 5V
  • Current Rating: 5A
  • External Diameter: 21.5mm
  • External Length / Height: 33.5mm
  • External Width: 43mm
  • IP / NEMA Rating: IP67
  • IP Rating: IP67
  • Insulation Resistance: 1000Mohm
  • Material: Stainless Steel
  • No. of Mechanical Operations: 1000000
  • Operating Temperature Max: 105°C
  • Operating Temperature Min: -30°C
  • Panel Cutout Diameter: 19.3mm
  • Panel Thickness Max: 8mm
  • Pushbutton Actuator Style: Flush
  • Pushbutton Switch Type: Anti-Vandal
  • Switch Mounting: Panel
