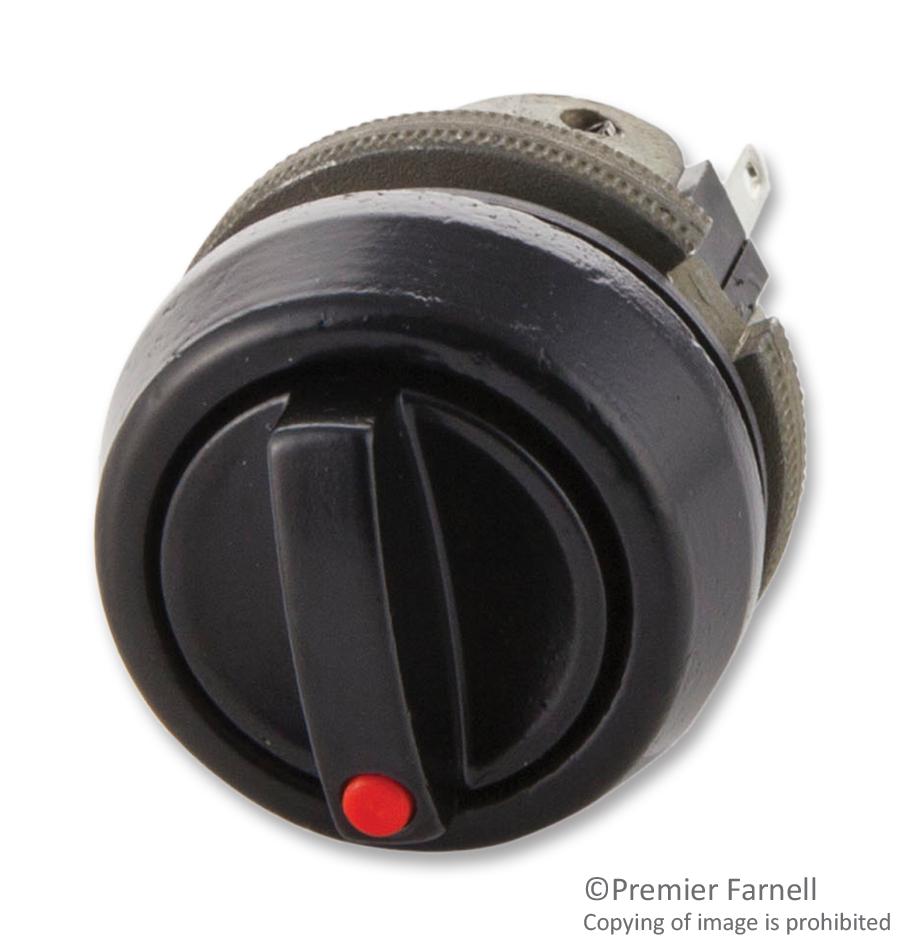

ITW SWITCHES - 76-9470/439088R - Rotary Switch, 2 Position, 1 Pole, 10 A, 250 V, 76-94
- No. of Switch Positions: 2 Position
- No. of Poles: 1 Pole
- Angle of Throw: -
- Contact Current AC Max: 10A
- Contact Voltage AC Max: 250V
- Product Range: 76-94 Series
- Illumination: Non Illuminated
- Contact Current DC Max: -
- Contact Voltage DC Max: -
- SVHC: No SVHC (17-Dec-2015)
- Actuator / Cap Colour: Black
- Colour: Red
- Contact Configuration: 1NO
- Contact Current @ Contact Voltage AC Max: 10A
- Contact Current @ Contact Voltage DC Min: 10mA
- Contact Current Min: 10mA
- Contact Resistance: 25mohm
- Dielectric Strength VDC: 1000V
- Double Flat Panel Cut-out Diameter: 22mm
- External Depth: 23mm
- External Diameter: 30mm
- External Length / Height: 31mm
- IP / NEMA Rating: IP67
- Insulation Resistance: 1000Mohm
- No. of Electrical Operations: 100000
- No. of Mechanical Operations: 1000000
- Operating Temperature Max: 135°C
- Operating Temperature Min: -40°C
- Panel Cutout Diameter: 22mm
- Panel Cutout Width: 20mm
- Panel Cutout length: 22mm
- Panel Thickness Max: 6mm
- Switch Operation: Off-On
