description

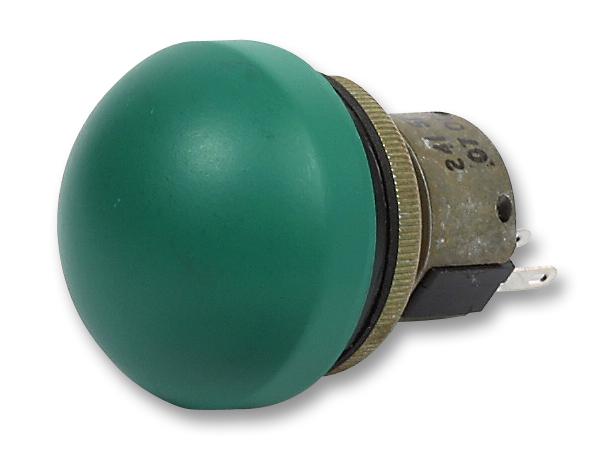

ITW SWITCHES - 76-9450/439088G - Industrial Pushbutton Switch, 76-94, 22.5 mm, SPDT-DB, Round Domed, Green
- Switch Operation: -
- Contact Configuration: SPDT-DB
- Contact Voltage AC Nom: 250V
- Contact Voltage DC Nom: -
- Contact Current Max: 10A
- Switch Terminals: Quick Connect, Solder
- Product Range: 76-94 Series
- SVHC: No SVHC (17-Dec-2015)
- Actuation Type: Dome
- Actuator / Cap Colour: Green
- Colour: Green
- Contact Current @ Contact Voltage AC Max: 10A
- Contact Current @ Contact Voltage DC Min: 10mA
- Contact Current AC Max: 10A
- Contact Current Min: 10mA
- Contact Resistance: 25mohm
- Contact Voltage VAC: 250V
- Dielectric Strength VDC: 1000V
- Double Flat Panel Cut-out Diameter: 22mm
- External Depth: 23mm
- External Diameter: 35mm
- External Length / Height: 31mm
- IP / NEMA Rating: IP67
- IP Rating: IP67
- Illumination Colour: Non-illuminated
- Insulation Resistance: 1000Mohm
- No. of Electrical Operations: 100000
- No. of Mechanical Operations: 1000000
- Operating Temperature Max: 135°C
- Operating Temperature Min: -40°C
- Panel Cutout Diameter: 22.5mm
- Panel Cutout Width: 20mm
- Panel Cutout length: 22mm
