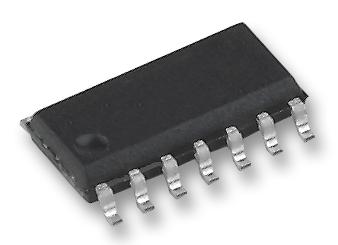

NEXPERIA - 74HC74D,653 - Flip-Flop, with Set and Reset,Complementary Output, Positive Edge, 74HC74, D, 14 ns, 76 MHz, 5.2 mA
- Logic Family / Base Number: 74HC74
- Flip-Flop Type: D
- Propagation Delay: 14ns
- Frequency: 76MHz
- Output Current: 5.2mA
- Logic Case Style: SOIC
- No. of Pins: 14Pins
- Trigger Type: Positive Edge
- IC Output Type: Complementary
- Supply Voltage Min: 2V
- Supply Voltage Max: 6V
- Logic IC Family: 74HC
- Logic IC Base Number: 7474
- Operating Temperature Min: -40°C
- Operating Temperature Max: 125°C
- Product Range: Flip-Flop
- Automotive Qualification Standard: -
- RoHS Phthalates Compliant: Yes
- MSL: MSL 1 - Unlimited
- SVHC: No SVHC (27-Jun-2018)
- Base Number: 74
- IC Generic Number: 74HC74
- Logic Function Number: 7474
- Logic IC Base Number: 7474
- Logic IC Function: Dual D-Type Flip-Flop with Set and Reset
- No. of Gates: 2
- No. of Inputs: 1
- Operating Temperature Range: -40°C to +125°C
- Supply Voltage: 5V
- Supply Voltage Range: 2V to 6V
- Termination Type: Surface Mount Device
