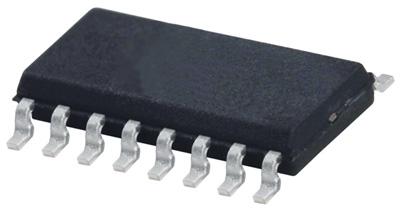

NEXPERIA - 74HC595D,118 - Shift Register, 74HC595, Serial to Parallel, Serial to Serial, 1 Element, 8 bit, SOIC, 16 Pins
- Logic Family / Base Number: 74HC595
- Shift Register Function: Serial to Parallel, Serial to Serial
- No. of Elements: 1 Element
- No. of Bits Per Element: 8bit
- Logic Case Style: SOIC
- No. of Pins: 16Pins
- Supply Voltage Min: 2V
- Supply Voltage Max: 6V
- IC Output Type: Tri State
- Logic IC Family: 74HC
- Logic IC Base Number: 74595
- Operating Temperature Min: -40°C
- Operating Temperature Max: 125°C
- Product Range: Shift Register
- Automotive Qualification Standard: -
- MSL: MSL 1 - Unlimited
- SVHC: No SVHC (27-Jun-2018)
- Base Number: 74
- Frequency: 100MHz
- Input Current Max: 1µA
- Logic Function Number: 74595
- Logic IC Base Number: 74595
- Logic IC Function: 8bit Ser-In/Ser or Par-Out Latched Shift Register (3-State)
- Logic Type: Shift Register
- No. of Elements: 1Elements
- Operating Temperature Range: -40°C to +125°C
- Power Dissipation Ptot Max: 500mW
- Supply Voltage: 5V
- Supply Voltage Range: 2V to 6V
- Termination Type: Surface Mount Device
