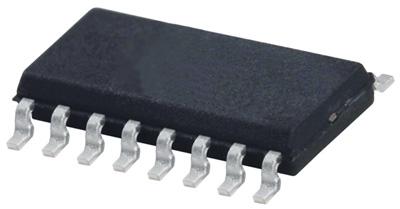

NEXPERIA - 74HC4052D,653 - Analog Multiplexer / Demultiplexer, 4:1, 2 Circuits, 90 ohm, 2V to 6V, SOIC-16
- Multiplexer Configuration: 4
- No. of Circuits: 2Circuits
- On State Resistance Max: 90ohm
- Supply Voltage Range: 2V to 6V
- Analogue Multiplexer Case: SOIC
- No. of Pins: 16Pins
- Operating Temperature Min: -40°C
- Operating Temperature Max: 125°C
- Product Range: 74HC4052
- Automotive Qualification Standard: -
- MSL: MSL 1 - Unlimited
- SVHC: No SVHC (27-Jun-2018)
- Base Number: 74
- IC Generic Number: 74HC4052
- Logic Case Style: SOIC
- Logic Function Number: 744052
- Logic IC Base Number: 744052
- Logic IC Function: Dual 4-Channel Analog Multiplexer/Demultiplexer
- Logic Type: Demultiplexer, Multiplexer
- No. of Channels: 4Channels
- No. of Gates: 2
- No. of Inputs: 4
- No. of Outputs: 8Outputs
- On Resistance Rds(on): 60ohm
- Operating Temperature Range: -40°C to +125°C
- Ratio: 4
- Supply Voltage: 5V
- Supply Voltage Max: 6V
- Supply Voltage Min: 2V
- Termination Type: Surface Mount Device
