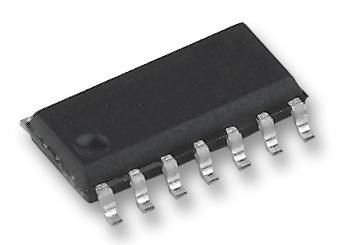

NEXPERIA - 74HC30D,653 - Logic IC, NAND Gate, Single, 8 Inputs, 14 Pins, SOIC, 74HC30
- Logic Family / Base Number: 74HC30
- Logic Type: NAND
- Output Current: 5.2mA
- No. of Inputs: 8
- Supply Voltage Min: 2V
- Supply Voltage Max: 6V
- Logic Case Style: SOIC
- No. of Pins: 14Pins
- Logic IC Family: 74HC
- Logic IC Base Number: 7430
- Operating Temperature Min: -40°C
- Operating Temperature Max: 125°C
- Product Range: -
- Automotive Qualification Standard: -
- RoHS Phthalates Compliant: Yes
- MSL: MSL 1 - Unlimited
- SVHC: No SVHC (27-Jun-2018)
- Base Number: 74
- Logic Function Number: 7430
- Logic IC Base Number: 7430
- Logic IC Function: 8 Input Positive NAND Gate
- No. of Gates: 1
- Operating Temperature Range: -40°C to +125°C
- Supply Voltage: 5V
- Supply Voltage Range: 2V to 6V
- Termination Type: Surface Mount Device
