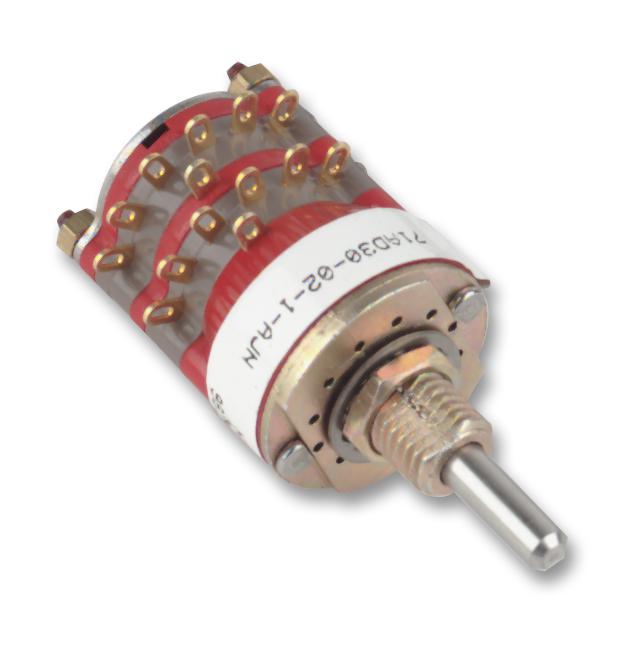

71BD30-02-1-AJN ROTARY SWITCH, 71 SERIES GRAYHILL

GRAYHILLUGS :71BD30-02-1-AJN Code de commande:1190401

Prix:
Prix ​​promotionnel€99,92

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (29 unité)

Documents et téléchargements

description

GRAYHILL - 71BD30-02-1-AJN - Rotary Switch, 12 Position, 1 Pole, 30 °, 200 mA, 115 V, 71

  • No. of Switch Positions: 12 Position
  • No. of Poles: 1 Pole
  • Angle of Throw: 30°
  • Contact Current AC Max: 200mA
  • Contact Voltage AC Max: 115V
  • Product Range: 71 Series
  • Illumination: Non Illuminated
  • Contact Current DC Max: 200mA
  • Contact Voltage DC Max: 30V
  • SVHC: No SVHC (27-Jun-2018)
  • Angle: 30°
  • Contact Configuration: SPDT
  • Contact Current Rating: 4A
  • Contact Resistance: 50mohm
  • External Diameter: 17.45mm
  • Indexing Angle: 30°
  • Insulation Resistance: 1000Mohm
  • No. of Electrical Operations: 15000
  • No. of Wafers per Switch Max: 2
  • Resistive Current Rating: 4A
  • Shaft Diameter: 0.25"
  • Shaft Length: 7.92mm
  • Switch Operation: On-Off
  • Switching Current AC Max: 500mA
  • Switching Current DC Max: 250mA
  • Thread Size: 3/8"-32 UNEF-2A
