702-0300 Socket, xlr, Panel, 3POLE Deltron Components

DELTRON COMPONENTSUGS :702-0300 Code de commande:1193906

Prix:
Prix ​​promotionnel€16,86

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (192 unité)

Documents et téléchargements

description

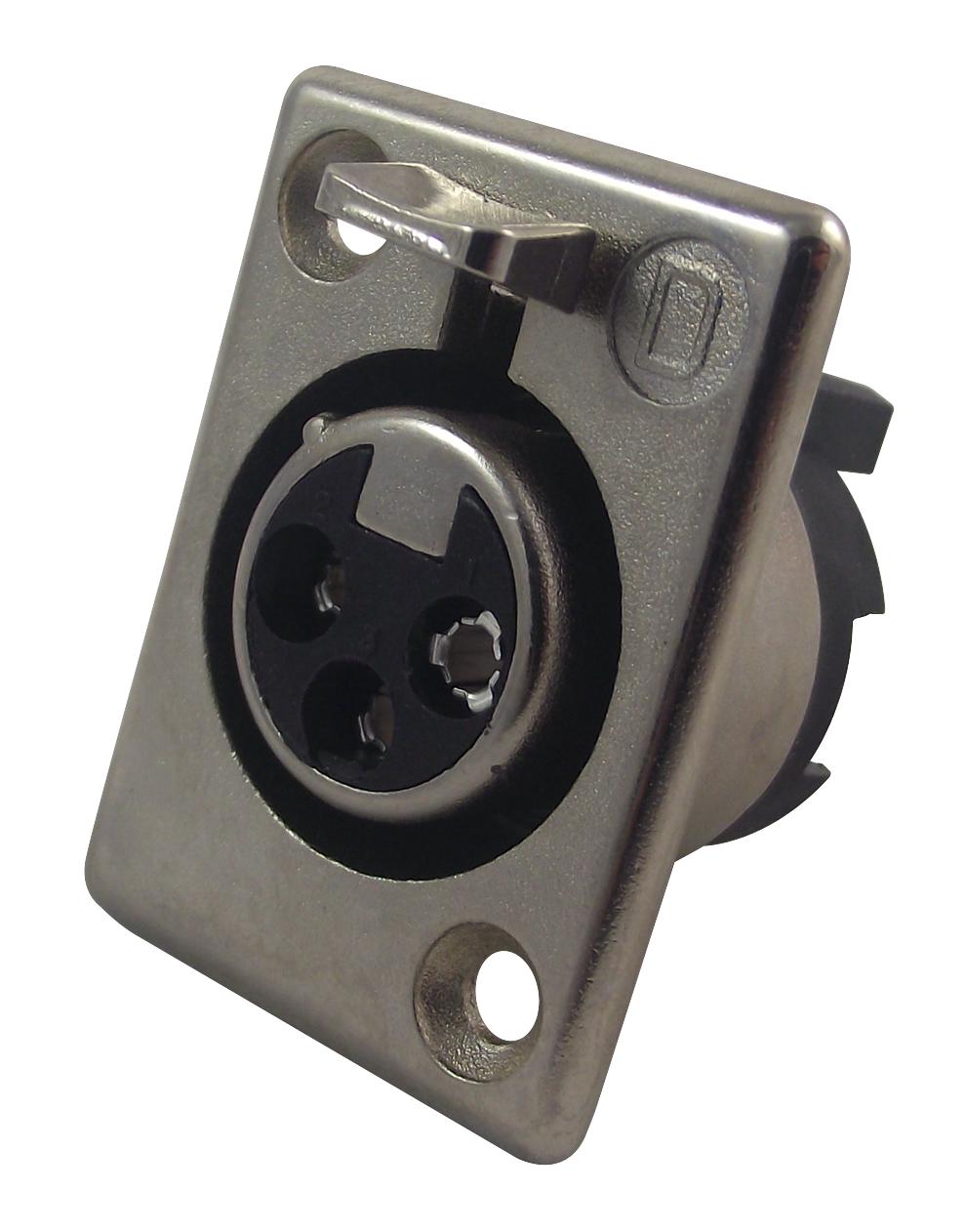

DELTRON COMPONENTS - 702-0300 - XLR Connector, 3 Contacts, Jack, Panel Mount, Silver Plated Contacts, Metal Body, 7000

  • No. of Contacts: 3Contacts
  • Gender: Jack
  • Connector Mounting: Panel Mount
  • Contact Plating: Silver Plated Contacts
  • Connector Body Material: Metal Body
  • Product Range: 7000 Series
  • SVHC: No SVHC (15-Jan-2019)
  • Colour: Nickel
  • Connector Colour: Natural
  • Contact Resistance: 3mohm
  • Contact Termination: Solder
  • Current Rating: 16A
  • External Length / Height: 37.3mm
  • External Width: 27.4mm
  • Flammability Rating: UL94V-1
  • Material: Diecast Zinc, Satin Nickel Plated
  • Operating Temperature Max: 80°C
  • Operating Temperature Min: -30°C
  • Panel Cutout Diameter: 24.5mm
  • Proof Voltage: 1.5kV
  • RMS Current (Irms): 16A
  • Termination Method: Solder
  • Voltage Rating VAC: 250V
  • Working Voltage: 250V
