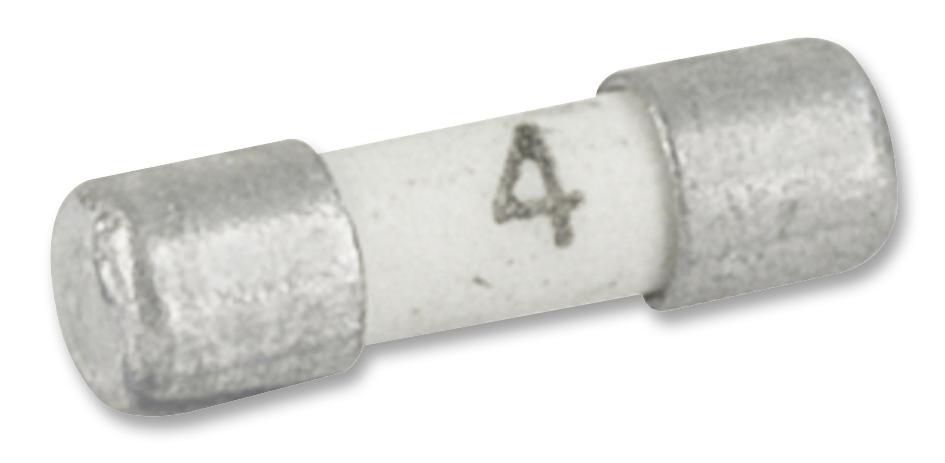

SCHURTER - 7010.9790.63 - Fuse, Surface Mount, 500 mA, Fast Acting, 125 VAC, 125 VDC, 7mm x 2mm, 172876
- Fuse Current: 500mA
- Product Range: 172876 Series
- Voltage Rating VAC: 125VAC
- Voltage Rating V DC: 125VDC
- Blow Characteristic: Fast Acting
- Fuse Case Style: SMD
- Breaking Capacity Current AC: 300A
- Breaking Capacity Current DC: 300A
- SVHC: Lead (15-Jan-2019)
- Approval Bodies: CSA
- Approval Category: UL Recognised
- Body Diameter: 2mm
- Body Length: 7mm
- Breaking Capacity: 300A @ 125V AC / DC
- Case Material: Ceramic
- Fuse Type Blowing Characteristic: Quick Blow
- Operating Temperature Max: 85°C
- Operating Temperature Min: -55°C
- Voltage Drop @ Rated Current: 205mV
